DAC30630042 RICH 30x63x42 DAC30630042 RICH
zoom_out_map
DAC30630042 RICH 30x63x42 DAC30630042 RICH

DAC30630042 RICH 30x63x42

Type: Double Row Angular Contact Ball Bearing
Model: RICH DAC30630042
Dimensions: 30 x 63 x 42 mm
Brand: RICH
Origin: China
RICH
DAC30630042
€10.20
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

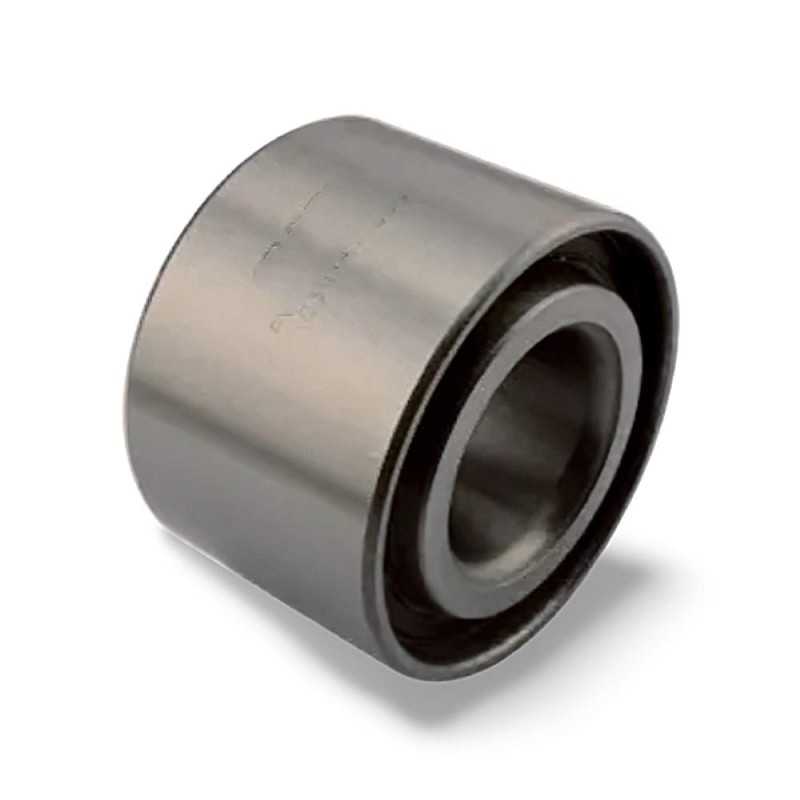

DAC30630042 RICH Double Row Angular Contact Ball Bearing – 30 × 63 × 42 mm

Technical Specifications:

  • Brand: RICH
  • Type: Double row angular contact ball bearing
  • Model: DAC30630042 RICH
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 63 mm
  • Width (B): 42 mm
  • Sealing: None (Open)
  • Weight: 0.546 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Double row radial ball assembly designed for combined axial and radial load support.
  • Internal Geometry: Opposed angular contact raceways providing high system rigidity.
  • Material Type: High‑carbon chrome bearing steel.
  • Dimensional Format: 30 × 63 × 42 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
63
Width
42
Weight
0,574
Ball Rows
Double Row
Clearance
CN (Normal)
Category
Double Row Angular-Contact Ball Bearing
