7200-B RICH 10x30x9 | Contact Angle: 40°
Rating:
(0)
EUR €
- EUR €
- USD $

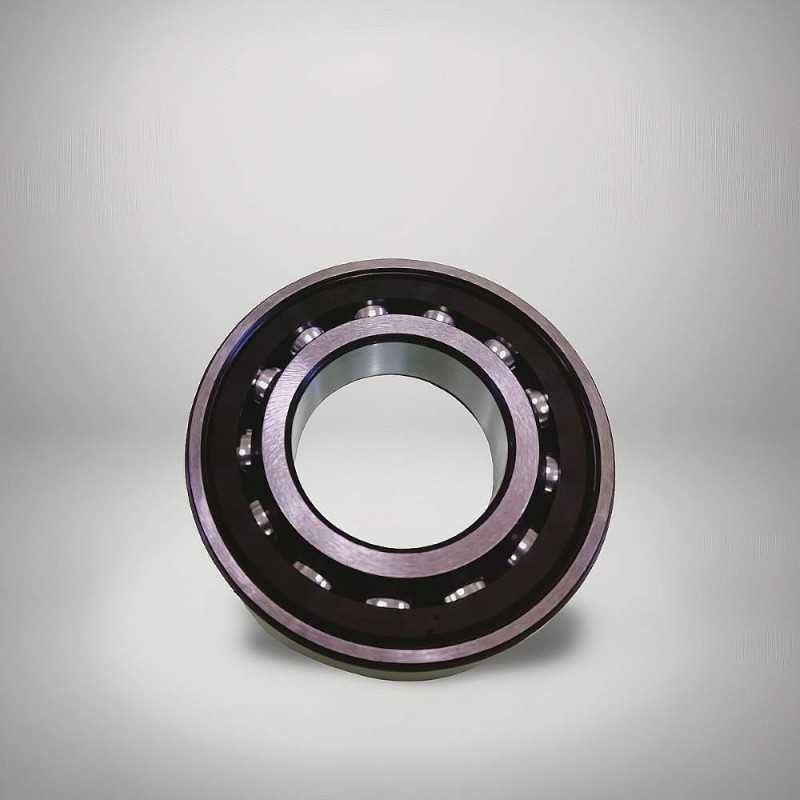

7200-B RICH Single Row Angular-Contact Ball Bearing - 10 x 30 x 9 mm
Technical Specifications:
- Product Type: Single Row Angular-Contact Ball Bearing
- Model Designation: 7200-B
- Brand: RICH
- Bore Diameter (d): 10 mm
- Outer Diameter (D): 30 mm
- Width (B): 9 mm
- Contact Angle: 40° (B)
- Cage Material: Textolite, outer ring centred (Optimized for high speed)
- Sealing: None
- Weight: 0.031 kg
- Country of Origin: China
The 7200-B RICH is a high-precision single row angular-contact ball bearing engineered for applications demanding extreme speed and superior axial load support. The designation B indicates a large 40° contact angle, which is optimized for managing substantial unidirectional axial loads along with combined radial forces. With compact dimensions of 10 mm bore, 30 mm outer diameter, and a 9 mm width, this bearing is ideal for precise machinery, including machine tool spindles and high-speed rotary equipment. A critical feature is the high-performance Textolite cage, which is centered on the outer ring. This cage material and guidance method ensure lightweight operation, low friction, and excellent stability, making the 7200-B RICH particularly suitable for the most demanding, high-speed applications.
Key Performance Advantages:
- Extreme High-Speed Capability: Textolite cage construction and outer ring guidance ensure stability and minimal friction at very high RPM.
- Superior Axial Load Support: The 40° contact angle (B) efficiently handles heavy unidirectional axial loads.
- High Precision: Built for accurate shaft guidance and rotational performance.
- RICH Quality: A specialized component designed for peak performance and durability in precision machinery.
Data sheet
Inner Diameter
10
Outer Diameter
30
Width
9
Weight
0,03
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Single Row Angular-Contact Ball Bearing
