E 3 P6 RICH 3x16x5 E3P6 RICH
zoom_out_map
E 3 P6 RICH 3x16x5 E3P6 RICH

E 3 P6 RICH 3x16x5

Type: Single Row Angular Contact Ball Bearing
Model: E 3.P6 RICH
Dimensions: 3 x 16 x 5 mm
Precision: P6
Brand: RICH
Origin: China
RICH
E3P6
€1.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

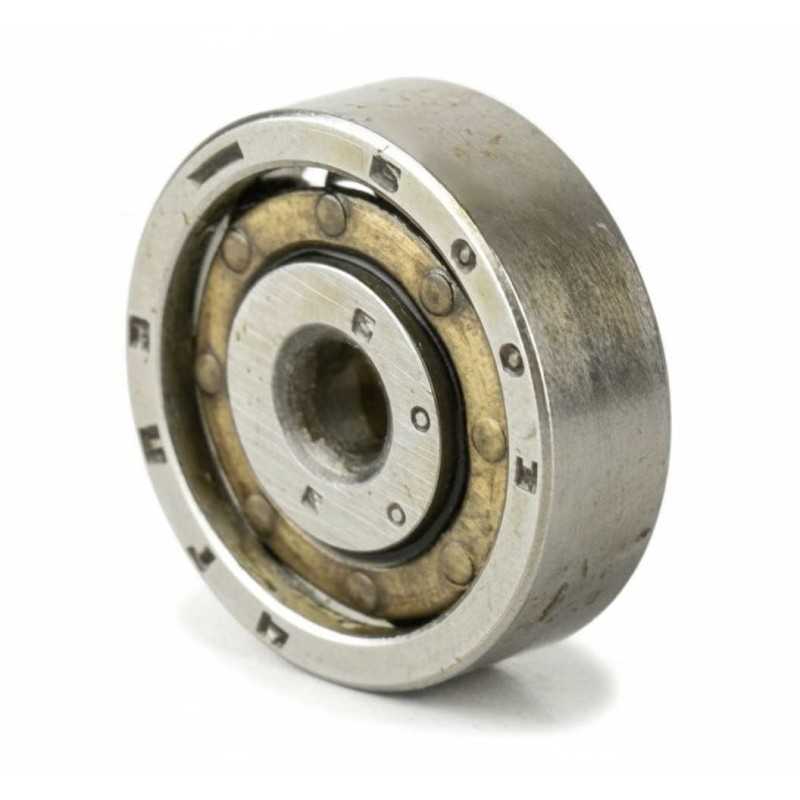

E 3 P6 RICH – Single Row Angular Contact Ball Bearing Miniature – 3 × 16 × 5 mm

Technical Specifications:

  • Type: Single row angular contact ball bearing (Miniature)
  • Brand: RICH
  • Model Designation: E 3.P6
  • Inner Diameter (d): 3 mm
  • Outer Diameter (D): 16 mm
  • Width (B): 5 mm
  • Precision Class: P6 (ISO Class 6)
  • Cage Material: Steel
  • Sealing: None (Open configuration)
  • Weight: 0.03 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single-row angular contact design for the management of combined radial and unidirectional axial loads.
  • Precision Level: P6 tolerance class specifying dimensional and running accuracy parameters.
  • Internal Geometry: Spherical rolling elements secured by a metallic cage in a miniature dimensional format.
  • Dimensional Format: 3 x 16 x 5 mm technical profile for radial and axial load support in compact assemblies.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
3
Outer Diameter
16
Width
5
Ball Rows
Single Row
Sealing
Open
Cage
Steel
Category
Single Row Angular-Contact Ball Bearing
