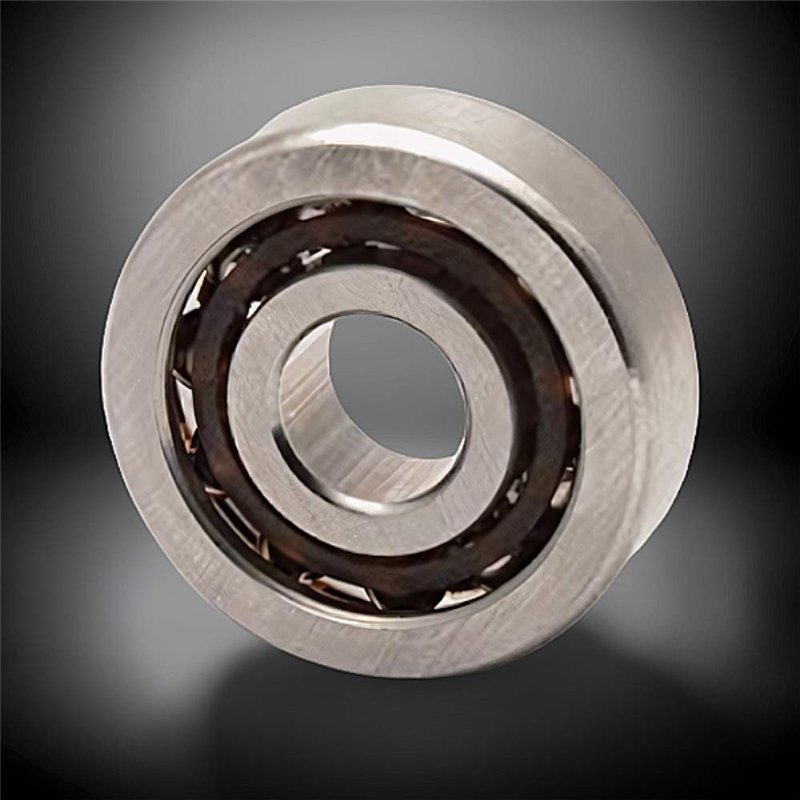

SS 7206 B TN RICH 30x62x16 | Polyamide Cage SS7206BTN RICH
zoom_out_map
SS 7206 B TN RICH 30x62x16 | Polyamide Cage SS7206BTN RICH

SS 7206 B TN RICH 30x62x16 | Polyamide Cage

RICH
SS7206BTN
€18.08
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SS 7206.B.TN RICH Stainless Steel Angular Contact Ball Bearing – 30 × 62 × 16 mm

Technical Specifications:

  • Type: Single row angular contact ball bearing
  • Brand: RICH
  • Model Designation: SS 7206.B.TN
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 16 mm
  • Contact Angle: 40° (B)
  • Cage Material: Polyamide (TN)
  • Material: Stainless steel
  • Sealing: None (Open type)
  • Weight: 0.196 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single-row design with raceways displaced relative to each other in the direction of the bearing axis, optimized for combined loads.
  • Material Type: High-grade stainless steel construction for maximum corrosion resistance in demanding industrial environments.
  • Internal Geometry: 40° contact angle (B) specifically engineered to support heavy axial loads in one direction.
  • Cage Performance: Polyamide cage (TN) ensures quiet operation, low friction, and excellent performance at high speeds.
  • Dimensional Format: 30 × 62 × 16 mm configuration.

Transparency Note:

This bearing is manufactured under the RICH brand. Dimensional values are provided solely for identification and do not imply compatibility with specific equipment or manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
62
Width
16
Weight
0,196
Ball Rows
Single Row
Cage
Polyamide Cage
Category
Single Row Angular-Contact Ball Bearing
