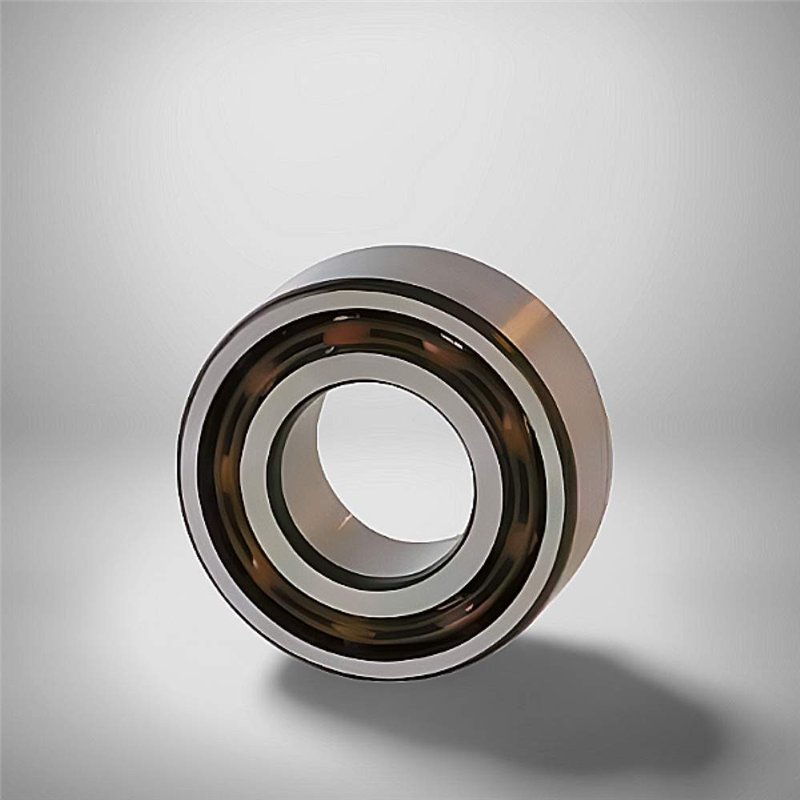

3314 RICH Double Row Angular-Contact Ball Bearing - 70 x 150 x 63.5 mm

The 3314 RICH is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 70 mm bore, 150 mm outer diameter, and 63.5 mm width, it offers a robust and effective solution for heavy-duty and demanding applications.

This RICH bearing features a durable steel cage, ensuring optimal ball separation and stable operation, even under significant loads and varying conditions. The double-row design of this bearing allows it to handle axial loads in both directions, making it highly versatile for applications where axial forces can fluctuate or reverse.

Weighing 4.91 kg, this substantial component from RICH offers dependable performance and resilience in heavy industrial machinery. It is ideally suited for applications requiring high precision and the ability to manage significant combined loads in both directions, such as large machine tool spindles, heavy-duty gearboxes, large pumps, and other industrial equipment where accurate shaft guidance and reliable operation under extreme conditions are crucial.

Key Specifications:

  • Type: Double Row Angular-Contact Ball Bearing
  • Brand: RICH
  • Model: 3314 RICH
  • Dimensions: 70 mm bore x 150 mm outer diameter x 63.5 mm width
  • Bore Diameter (d): 70 mm
  • Outer Diameter (D): 150 mm
  • Width: 63.5 mm
  • Cage Material: Steel
  • Weight: 4.91 kg
  • Country of Origin: China

Key Advantages:

  • High Combined Load Capacity: Designed to efficiently handle substantial radial and axial loads simultaneously, in both directions.
  • Durable Steel Cage: Ensures robust performance and extended service life under heavy use.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.

Data sheet

Inner Diameter
70
Outer Diameter
150
Width
63,5
Weight
4,91
Ball Rows
Double Row
Clearance
CN (Normal)
Category
Double Row Angular-Contact Ball Bearing
