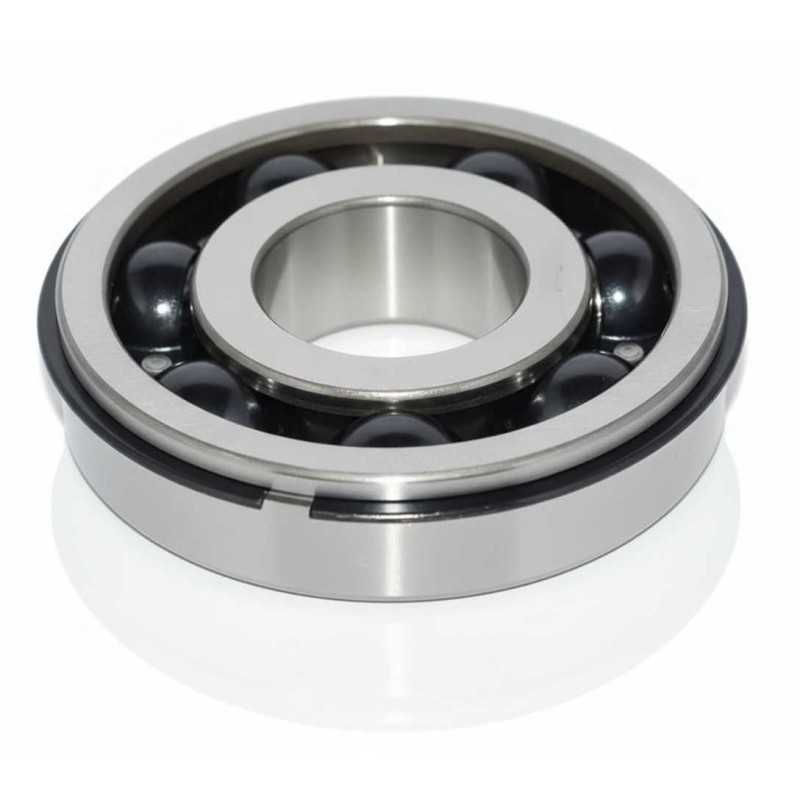

B32-14 NR C3 RICH Single Row Deep Groove Alternator Ball Bearing – 32 × 80 × 20 mm
OE Reference: 90363-32019 (TOYOTA)
OE Reference: 90363-32016 (TOYOTA) | 90363-32017 (TOYOTA)
The B32‑14 NR C3 RICH is a single row deep groove ball bearing with a 32 × 80 × 20 mm dimensional format. It includes a snap ring groove with snap ring (NR) on the outer ring and a C3 radial internal clearance classification associated with temperature‑related dimensional variation.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: B32-14 NR C3 RICH
- Inner Diameter (d): 32 mm
- Outer Diameter (D): 80 mm
- Width (B): 20 mm
- Internal Clearance: C3
- Cage Material: Steel
- Outer Ring Feature: NR (Snap ring groove and snap ring)
- Sealing: Open (None)
- Weight: 0.464 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial load arrangement with allowance for axial forces in both directions
- Thermal Classification: C3 clearance associated with thermal expansion behavior
- Retention Layout: NR configuration for axial positioning within the housing
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Associated with the OE identification codes listed above
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
