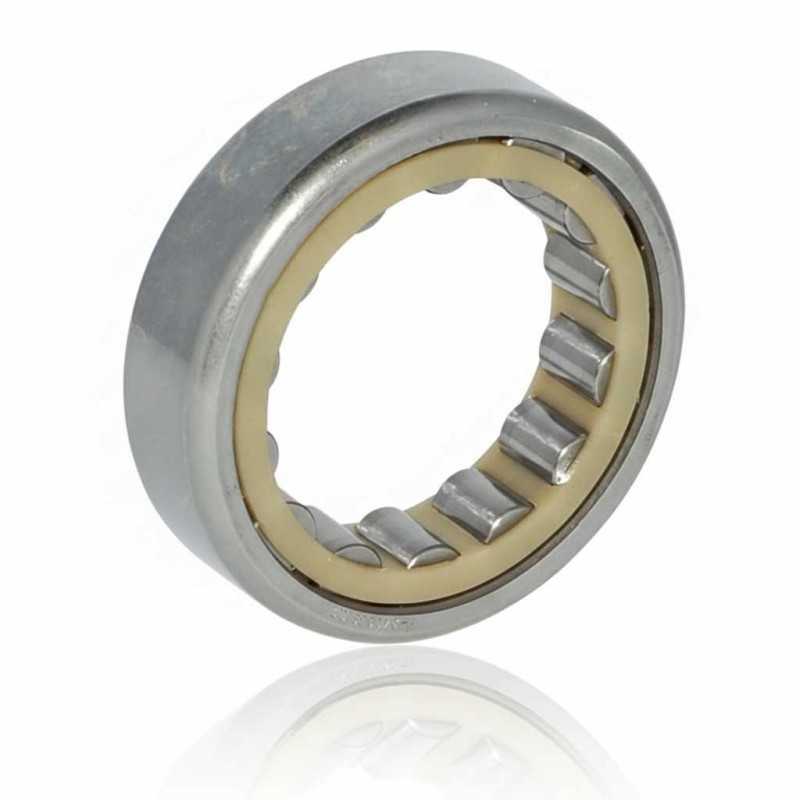

F-240039.03 RICH Cylindrical Roller Bearing Without Inner Ring – 43 × 66 × 17 mm
OE References:
- Audi: 01J311429A, 01J311429N
- VW: 01J311429A, 01J311429N
The F-240039.03 RICH is a cylindrical roller bearing without an inner ring, featuring a 43 × 66 × 17 mm dimensional format. This configuration utilizes a polyamide cage for roller guidance and relies on the shaft surface to function as the direct internal raceway.
Technical Specifications:
- Brand: RICH
- Type: Cylindrical roller bearing without inner ring
- Model: F-240039.03 RICH
- Inner Diameter (Fw): 43 mm
- Outer Diameter (D): 66 mm
- Width (C): 17 mm
- Cage Material: Polyamide
- Weight: 0.162 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial load arrangement for high-capacity requirements in specific transmission housings.
- Structural Layout: Outer ring, polyamide cage, and roller set without an inner ring component.
- Cage Guidance: Polyamide cage designed for friction reduction and optimized roller alignment.
- Material Type: High‑carbon chrome bearing steel rollers and outer ring.
- Application Interface: Dimensional interface corresponding to the Audi and VW OE identification codes listed above.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
