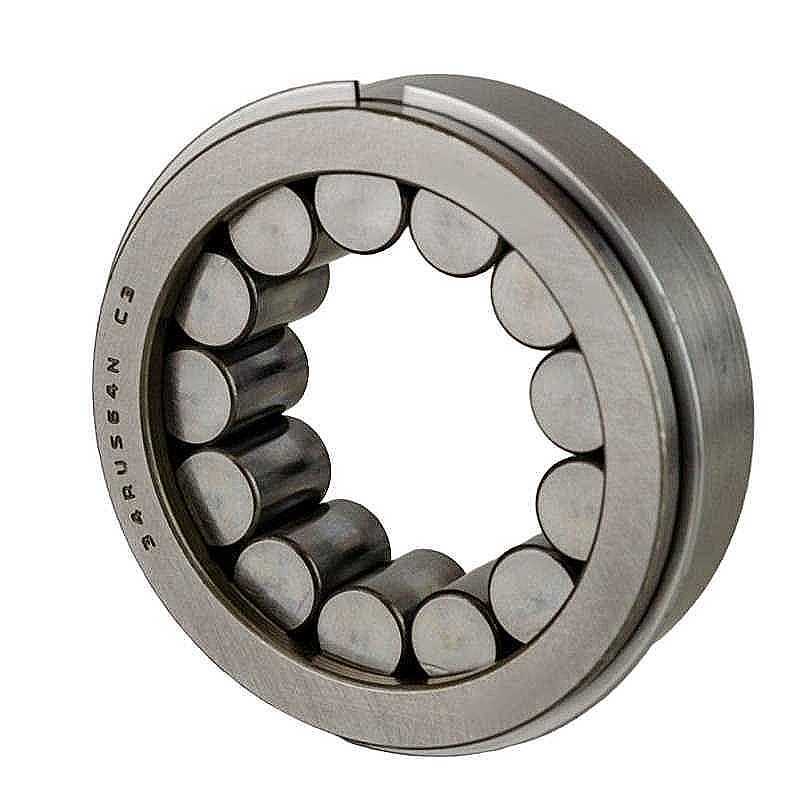

34 RUKS 64 NR C3 RICH Cylindrical Roller Bearing Without Inner Ring – 34 × 64 × 22 mm
Oe References:
- TOYOTA: 90365-T0007
- TOYOTA: 90365-34005
- TOYOTA: 90365-34006
- TOYOTA: 90365-T0002
- TOYOTA: 90365-T0003
Technical Specifications:
- Brand: RICH
- Type: Cylindrical roller bearing without an inner ring
- Model: 34 RUKS 64 NR C3 RICH
- Bore Diameter (under rollers): 34 mm
- Outer Diameter (D): 64 mm
- Width (C): 22 mm
- Radial Clearance: C3 (Greater than Normal)
- Cage Material: None (Full complement)
- Feature: Groove with snap ring on outer ring
- Weight: 0.303 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Radial cylindrical assembly designed for direct shaft contact, featuring an integrated snap ring for axial retention.
- Internal Geometry: Full complement design without a cage to maximize radial load capacity within a compact envelope.
- Material Type: High‑carbon chrome bearing steel for superior wear resistance in heavy-duty transmission environments.
- Dimensional Format: 34 × 64 × 22 mm configuration with C3 internal clearance to manage thermal expansion.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
