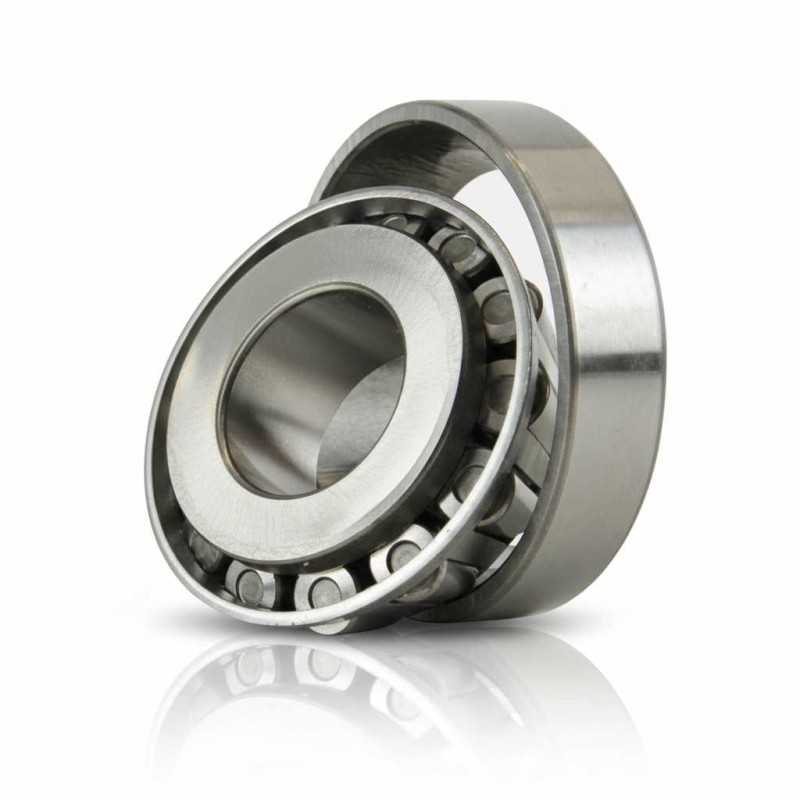

STA 3574-1 LFT RICH Single Row Tapered Roller Bearing – 35 × 74 × 26 mm
Oe References:
- TOYOTA: 90366-35157
- TOYOTA: 90366-35159
Technical Specifications:
- Brand: RICH
- Type: Single row tapered roller bearing
- Model: STA 3574-1 LFT RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 74 mm
- Total Width (T): 26 mm
- Inner Ring Width (B): 26 mm
- Outer Ring Width (C): 18.92 mm
- Weight: 0.55 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Separable design comprising an inner cone and an outer cup, allowing for independent installation and adjustment.
- Internal Geometry: LFT (Low Friction Torque) optimized rollers and raceways designed to reduce operating temperatures and energy consumption.
- Material Type: High‑carbon chrome bearing steel for maximum fatigue resistance in automotive transmission and differential units.
- Dimensional Format: 35 × 74 × 26 mm configuration.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
