B35Z-4 C3 RICH 35,5x90x23

Type: Single Row Deep Groove Ball Bearing
Model: RICH B35Z-4 C3
Dimensions: 35.5 x 90 x 23 mm
Brand: RICH
Origin: China
RICH
B35Z-4-C3
€16.91
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

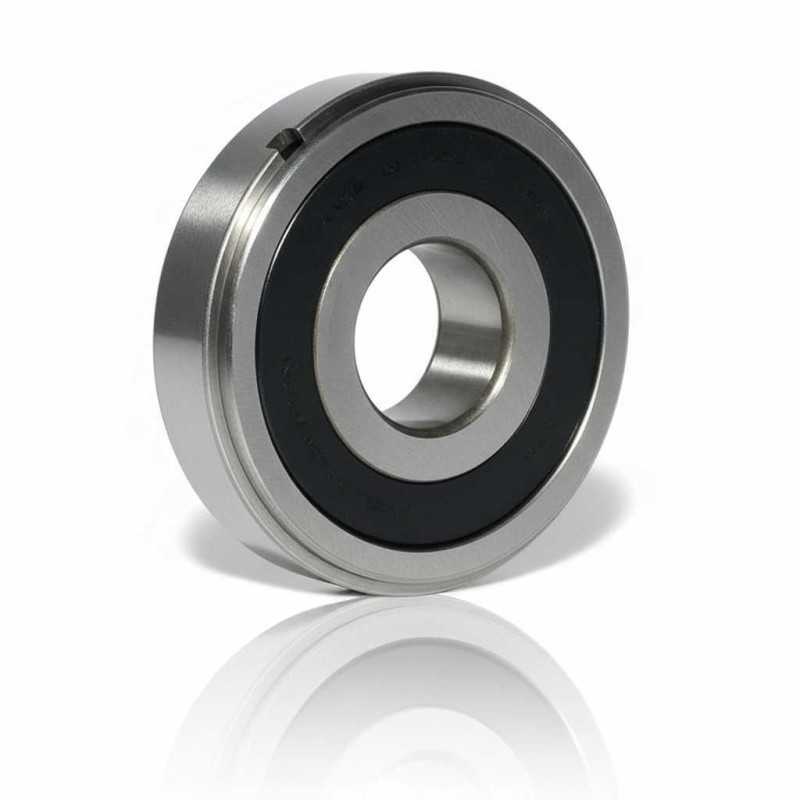

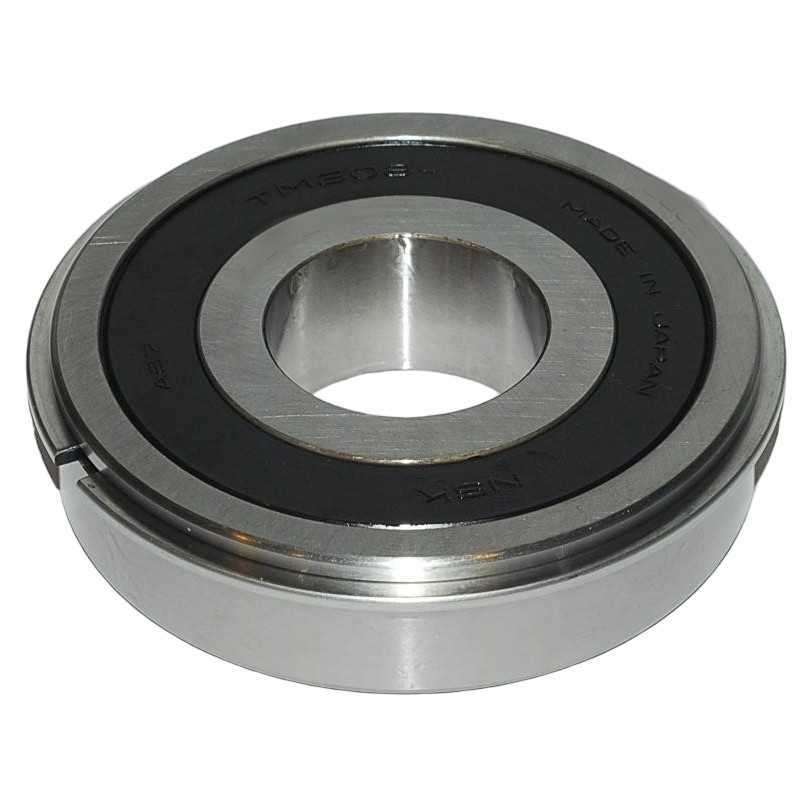

B35Z-4 C3 RICH Single Row Deep Groove Ball Bearing – 35.5 × 90 × 23 mm

Oe References:

  • MAZDA: Z501-17-202
  • MAZDA: Z602-17-202

Technical Specifications:

  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Model: B35Z-4 C3 RICH
  • Inner Diameter (d): 35.5 mm
  • Outer Diameter (D): 90 mm
  • Width (B): 23 mm
  • Radial Clearance: C3 (Greater than Normal)
  • Sealing: Double-sided rubber contact seals
  • Feature: Groove with snap ring on outer ring
  • Weight: 0.73 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Radial ball assembly featuring an integrated snap ring for precise axial retention within the transmission housing.
  • Internal Geometry: Deep groove design with C3 internal clearance, specifically engineered to compensate for thermal expansion during intensive operation.
  • Material Type: High‑carbon chrome bearing steel for superior wear resistance and high fatigue life in automotive gearbox applications.
  • Dimensional Format: 35.5 × 90 × 23 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
35,5
Outer Diameter
90
Width
23
Weight
0,7
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
