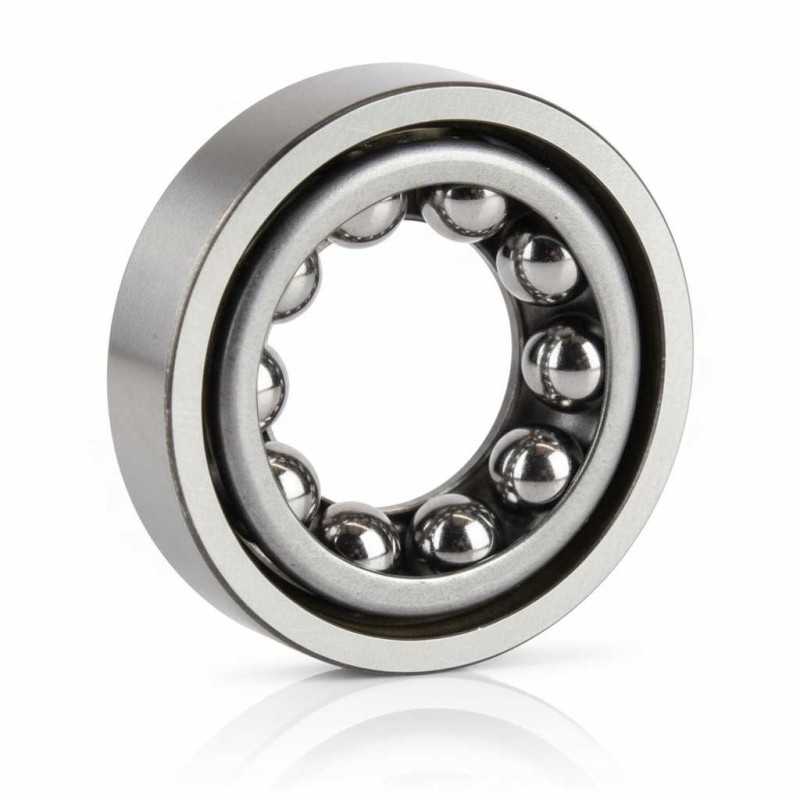

VTAA 19 Z-1 RICH Single Row Angular Contact Ball Bearing – 19.492 × 41 × 11.6 mm
OE References:
- TOYOTA 9036941011
- MITSUBISHI 0345231000
- MITSUBISHI MA301463
Technical Specifications:
- Type: Single row angular-contact ball bearing
- Brand: RICH
- Model Designation: VTAA 19 Z-1 RICH
- Inner Diameter (d): 19.492 mm
- Outer Diameter (D): 41 mm
- Width (B): 11.6 mm
- Weight: 0.071 kg
- Cage: Steel
- Sealing: None (Open bearing)
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Single row radial-axial ball bearing.
- Internal Geometry: Angular contact raceways designed for the distribution of radial and axial thrust loads.
- Material Composition: High-carbon chromium steel rings and rolling elements.
- Lubrication: Open configuration intended for oil bath or grease lubrication systems.
- Dimensional Format: 19.492 × 41 × 11.6 mm configuration.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
