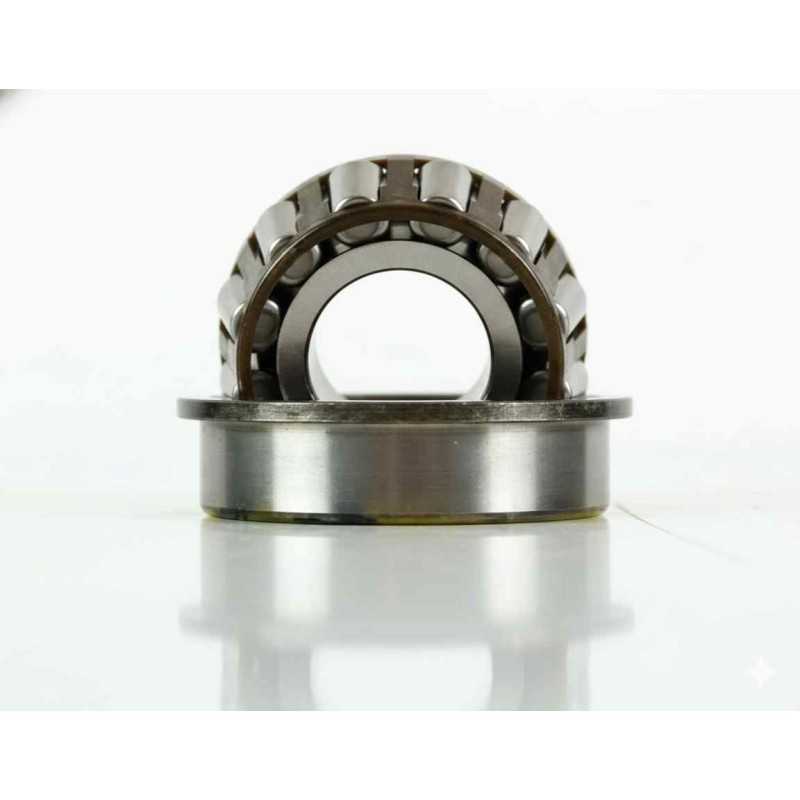

EC40987 H206 RICH Tapered Roller Bearing with Flange – 25 × 59 × 4 mm
OE References:
- NISSAN 32264-00QAH
- RENAULT 8200115697
Technical Specifications:
- Type: Tapered roller bearing with flange
- Brand: RICH
- Model Designation: EC40987 H206 RICH
- Inner Diameter (d): 25 mm
- Outer Diameter (D): 59 mm
- Total Width (T): 4 mm
- Inner Ring Width (B): 17.5 mm
- Outer Ring Width (C): 17.5 mm
- Flange Diameter (D1): 65 mm
- Weight: 0.243 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Single row tapered roller bearing featuring an integrated flange on the outer ring for axial location.
- Internal Geometry: Engineered to manage heavy combined radial and axial thrust loads in transmission applications.
- Material Composition: Manufactured from premium high-carbon chromium steel for superior fatigue resistance.
- Special Features: Flanged design facilitates precise mounting and housing alignment within the gearbox assembly.
- Dimensional Format: 25 × 59 × 4 mm configuration with a 65 mm flange diameter.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
