• New
22BC05 RICH 22x56x14 22BC05S8NC2CS RICH
zoom_out_map
22BC05 RICH 22x56x14 22BC05S8NC2CS RICH

22BC05 RICH 22x56x14

Type: Single Row Deep Groove Ball Bearing
Model: 22BC05 RICH
Dimensions: 22 x 56 x 14 mm
Brand: RICH
Origin: China
RICH
22BC05S8NC2CS
€14.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

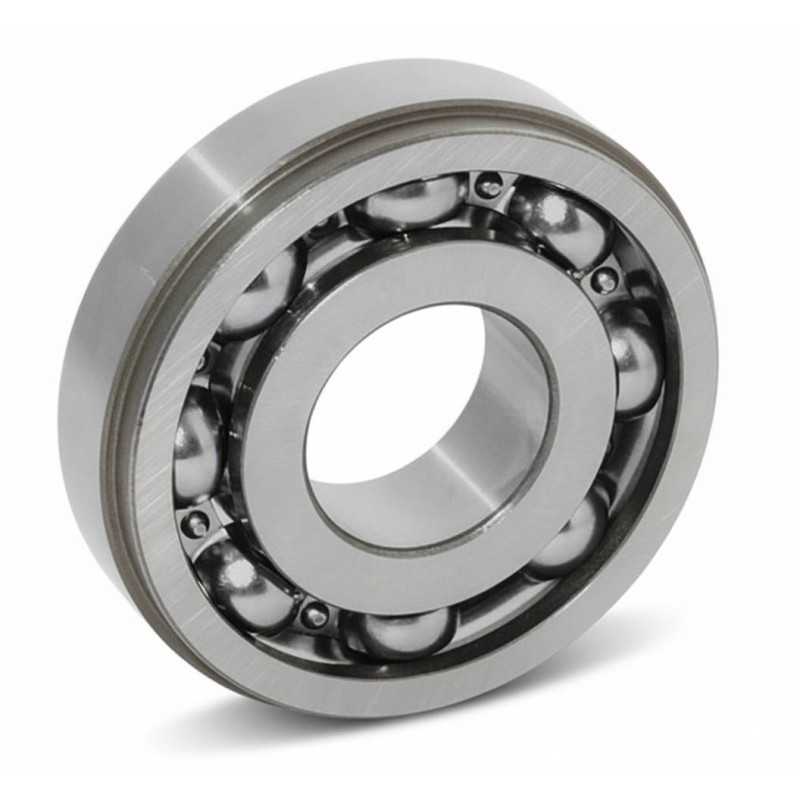

22BC05 RICH – Single Row Deep Groove Ball Bearing – 22 x 56 x 14 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 22BC05
  • Inner Diameter (d): 22 mm
  • Outer Diameter (D): 56 mm
  • Inner Ring Width (B): 14 mm
  • Outer Ring Width (C): 10.6 mm
  • Cage Material: Steel
  • Sealing: None (Open type)
  • Weight: 0.164 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Design: Single-row deep groove configuration featuring asymmetrical ring widths for specialized mechanical seating.
  • Load Capability: High-precision raceways designed to accommodate radial and axial loads with low frictional torque.
  • Material Integrity: Equipped with a robust steel cage that ensures stable rolling element guidance and high-speed reliability.
  • Dimensional Format: 22 x 56 x 14 mm specialized geometry engineered for precise fit in custom automotive and industrial assemblies.

Transparency Note:

This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
22
Outer Diameter
56
Width
14
Weight
0,164
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
