SF06A69V1 RICH 28x72x18 SF06A69V1 RICH
zoom_out_map
SF06A69V1 RICH 28x72x18 SF06A69V1 RICH

SF06A69V1 RICH 28x72x18

Type: Single Row Angular Contact Ball Bearing
Model: SF06A69V1 RICH
Dimensions: 28 x 72 x 18 mm
Brand: RICH
Origin: China
RICH
SF06A69V1
€23.93
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

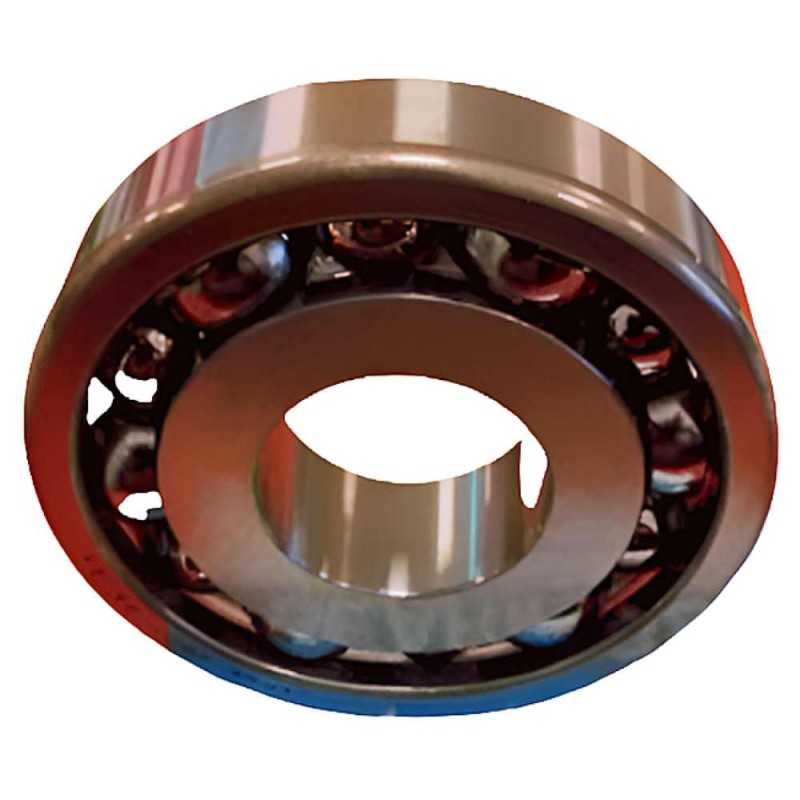

SF06A69V1 RICH Single Row Angular Contact Ball Bearing – 28 × 72 × 18 mm

OE References:

  • HONDA 91002-PPP-003
  • HONDA 91002-RAS-003
  • NTN 3TM-SF06A69V1

Technical Specifications:

  • Type: Single row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: SF06A69V1 RICH
  • Inner Diameter (d): 28 mm
  • Outer Diameter (D): 72 mm
  • Width (B): 18 mm
  • Outer Ring Width (C): 15 mm
  • Weight: 0.347 kg
  • Cage: Steel
  • Sealing: None (Open bearing)
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row radial-axial ball bearing designed for high-precision transmission systems.
  • Internal Geometry: Angular contact raceways engineered to manage combined radial and axial thrust loads.
  • Material Composition: High-carbon chromium steel rings and rolling elements.
  • Configuration: Open-type design intended for integrated lubrication environments.
  • Dimensional Format: 28 × 72 × 18 mm configuration with 15 mm outer ring width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
28
Outer Diameter
72
Width
18
Weight
0,347
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
