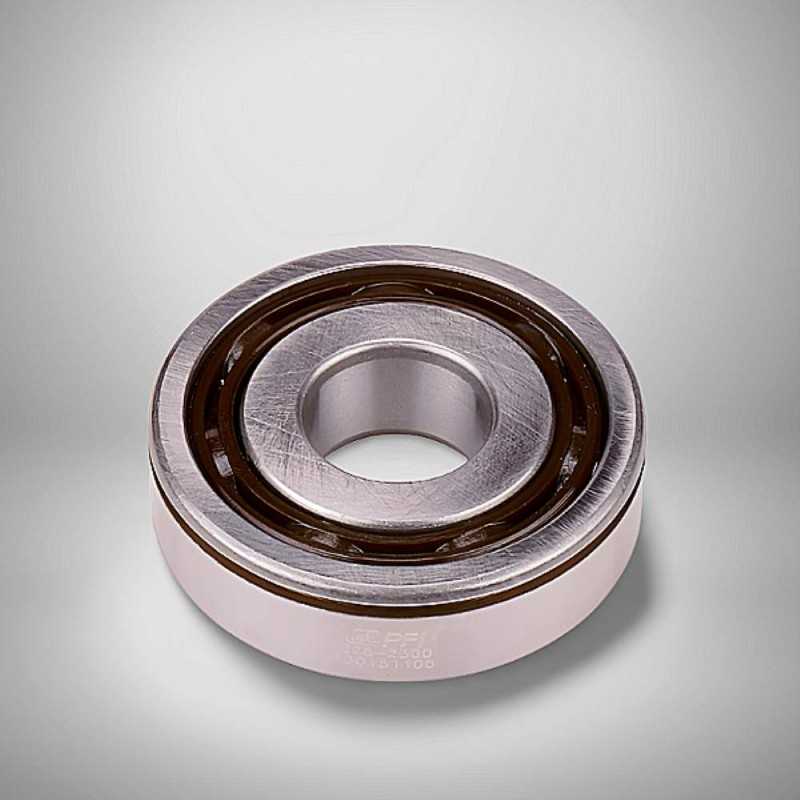

B25-238D RICH 25x68x19 B25-238D RICH
zoom_out_map
B25-238D RICH 25x68x19 B25-238D RICH

B25-238D RICH 25x68x19

Type: Single Row Deep Groove Ball Bearing (Grooved Outer Ring)
Model: B25-238D RICH
OE Reference: 90363-25068 TOYOTA
Dimensions: 25 x 68 x 19 mm
Brand: RICH
Origin: China
RICH
B25-238D
€6.41
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

B25-238D RICH – Single Row Deep Groove Ball Bearing – 25 x 68 x 19 mm

OE Reference:

  • RENAULT: 7903090055
  • TOYOTA: 90363-25048
  • TOYOTA: 90363-25068
  • SKF: 440536
  • SNR: AB10598S01
  • KOYO: DG2568HNSH2C3
  • NSK: B25-238NX

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: B25-238D
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 68 mm
  • Width (B): 19 mm
  • Cage Material: Polyamide
  • Groove on Outer Ring: Yes
  • Sealing: None (Open)
  • Weight: 0.311 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Specialized single-row deep groove ball bearing featuring an integrated groove on the outer ring for simplified axial retention within automotive gearboxes and housings.
  • Cage Design: Fitted with a high-grade polyamide cage, offering optimized ball guidance, reduced frictional heat, and superior performance in high-speed transmission environments.
  • Load Capability: Engineered to handle substantial radial loads while maintaining precise shaft alignment and rotational stability under dynamic operational stress.
  • Mechanical Interface: 25 x 68 x 19 mm dimensional format manufactured to rigorous tolerances for direct compatibility with Toyota, Renault, and other major vehicle manufacturer original equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
68
Width
19
Weight
0,311
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
