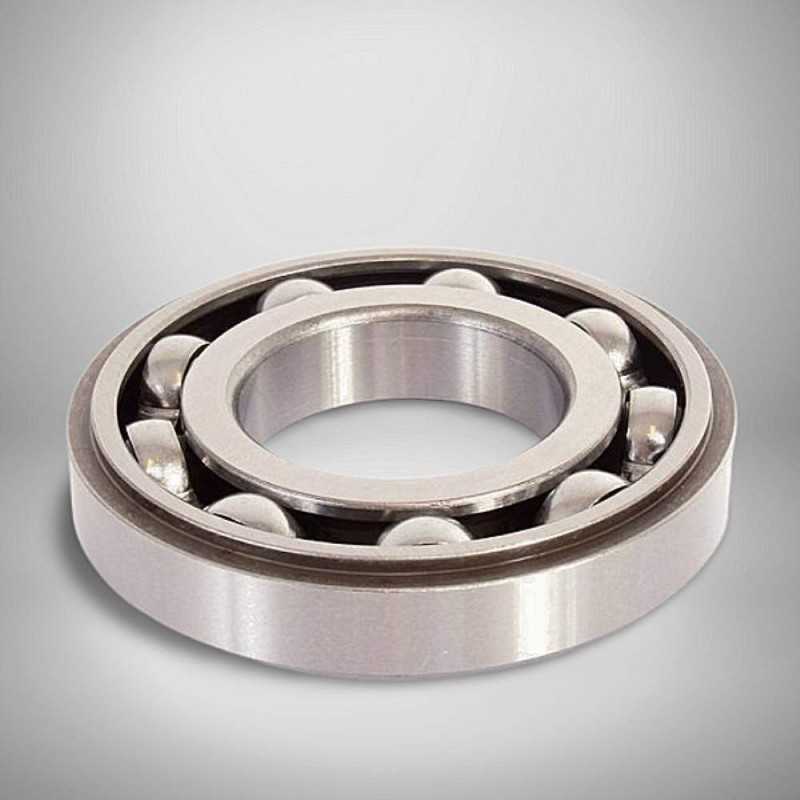

R30BCS6 RICH 30x62x11,3
Rating:
(0)
EUR €
- EUR €
- USD $
Single Row Deep Groove Ball Bearing, Air Conditioner Bearing R30BCS6 RICH - 30 x 62 x 11.3 mm with C3 Clearance and Steel Cage
The R30BCS6 RICH is a specialized single row deep groove ball bearing designed for use in air conditioner systems. Its robust construction and deep raceway grooves enable it to handle both radial and axial loads. This bearing features a steel cage for reliable ball guidance and is characterized by a C3 clearance, meaning it has a greater internal clearance than normal. This increased clearance is beneficial for applications where thermal expansion might occur or where slight misalignments need to be accommodated, common in air conditioning units. The overall dimensions of this bearing are 30 mm inner diameter, 62 mm outer diameter, and an overall width of 11.3 mm. The outer ring has a width (C) of 10 mm, and it has a diameter D' of 57 mm. This bearing is supplied without seals. It has an approximate weight of 0.145 kg. Manufactured in China by RICH.
Key Specifications:
- Type: Single Row Deep Groove Ball Bearing
- Feature: Air Conditioner Bearing
- Dimensions: 30 mm inner diameter x 62 mm outer diameter x 11.3 mm total width
- Outer Ring Width (C): 10 mm
- Diameter D': 57 mm
- Weight: 0.145 kg
- Cage Material: Steel
- Clearance: C3 (greater than normal)
- Sealing: None
- Country of Origin: China
- Brand: RICH
Key Advantages:
- Optimized for Air Conditioner Systems
- Greater Than Normal Clearance (C3) for thermal expansion and misalignment.
- Supports Combined Radial and Axial Loads
- Durable Steel Cage
- Reliable Performance in demanding applications
Data sheet
Inner Diameter
30
Outer Diameter
62
Width
11,3
Weight
0,145
Ball Rows
Single Row
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
