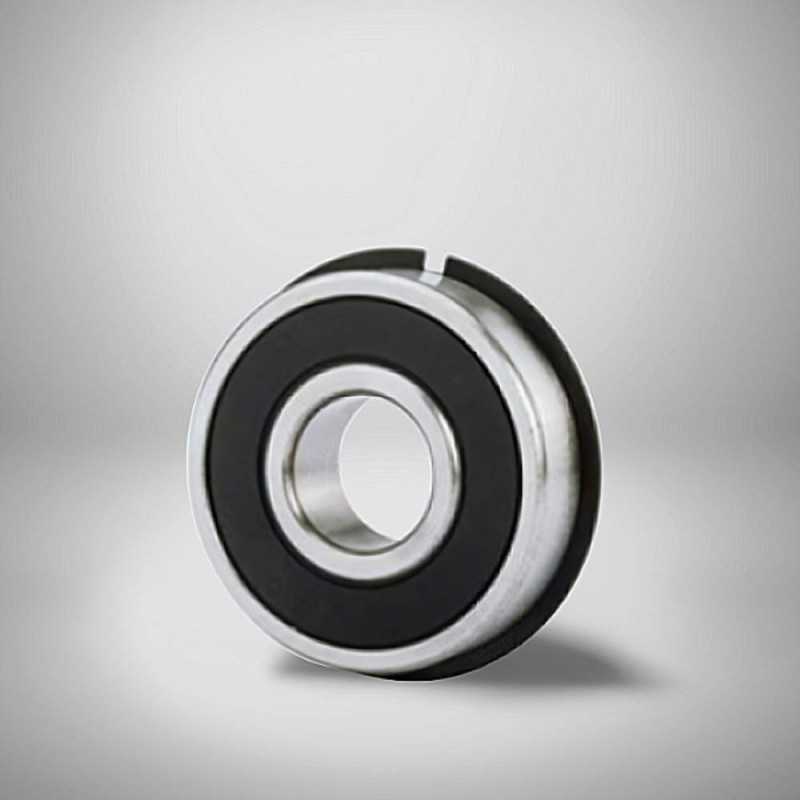

6307-2RS NR C3 RICH 35x80x21

6307 2RS NR C3 RICH Single Row Deep Groove Ball Bearing 35 x 80 x 21 mm - Sealed, Grooved, C3 Clearance

The 6307.2RS.NR.C3 RICH Single Row Deep Groove Ball Bearing is a high-performance component measuring 35 x 80 x 21 mm. This bearing is expertly designed for a wide range of applications requiring smooth and efficient rotational motion with high radial and axial load capacity. Manufactured in China by RICH, it features a robust steel cage and double-sided rubber contact seals (2RS), providing excellent protection against both dust and moisture, significantly extending its service life in contaminated environments.

A key feature of this deep groove ball bearing 6307.2RS.NR.C3 is the presence of a groove with a snap ring (NR) on the outer ring. This allows for axial location of the bearing in the housing, simplifying mounting and assembly, and reducing the need for additional components. It has a 35 mm inner diameter, 80 mm outer diameter, and a 21 mm width. The C3 internal clearance (greater than normal) makes it suitable for applications involving high temperatures, rapid accelerations, or potential misalignment, reducing friction and preventing premature wear.

Weighing just 0.463 kg, this 6307.2RS.NR.C3 RICH bearing provides a reliable and cost-effective solution for ensuring consistent performance and long-term durability in challenging operational conditions, especially where sealing, axial retention, and enhanced clearance are crucial.

Key Specifications:

• Type: Single Row Deep Groove Ball Bearing
• Model: 6307.2RS.NR.C3
• Application: General industrial use, automotive systems, machinery where contamination and axial retention are concerns
• Dimensions: 35 mm inner diameter x 80 mm outer diameter x 21 mm width
• Sealing: Double-sided rubber contact (2RS)
• Outer Ring Feature: Groove with a snap ring (NR)
• Clearance: C3 - Greater than normal
• Cage Material: Steel
• Weight: 0.463 kg
• Country of Origin: China
• Brand: RICH

Key Advantages:

• Effective Sealing (2RS): Double-sided rubber contact seals provide superior protection against dust, dirt, and moisture.
• Axial Location (NR): Outer ring groove with snap ring simplifies mounting and provides reliable axial positioning.
• Enhanced Clearance (C3): Provides greater than normal internal clearance for applications with high temperatures, rapid accelerations, or potential misalignment.
• Versatile Performance: Suitable for applications with both radial and moderate axial loads.
• Durable Steel Cage: Ensures robust performance and extended reliability.
• Cost-Effective Reliability: Provides trusted RICH quality for consistent performance.
