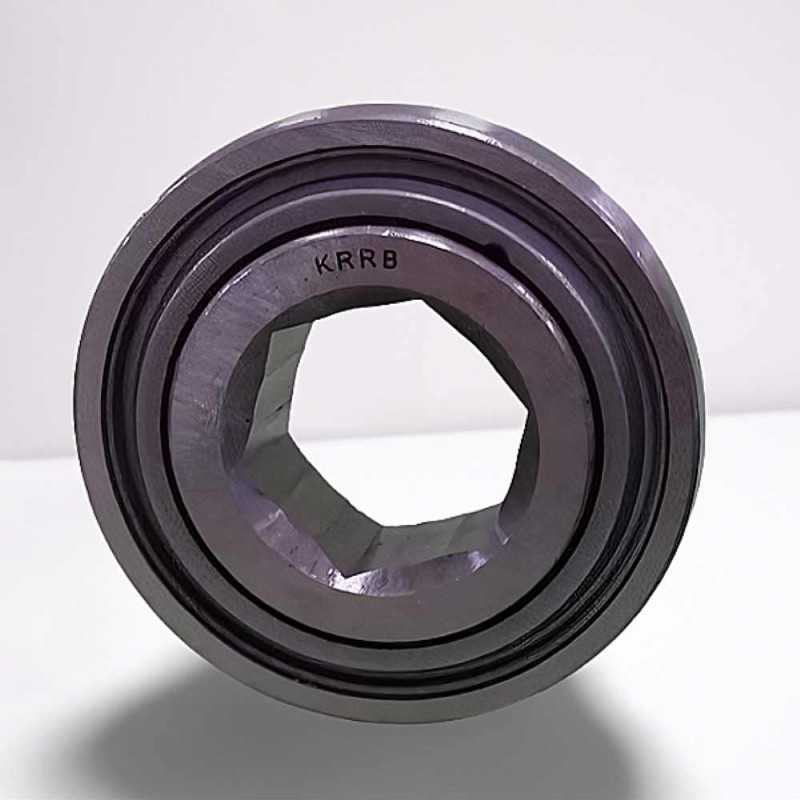

205KRRB2 C3 RICH 22,25x52x25,4

205KRRB2 C3 RICH Insert Ball Bearing with Hexagonal Hole - 22.25 x 52 x 25.4 mm Sealed

OE References:

• A&S: 205 KRRB2
• ANINA: SK014-205-KRR-B, FAG GVKE16-205
• BCA: HPS014GP
• CASE: 195293C91
• FAFNIR: 205KRRB2
• FKL: 205-KRRB2, L-205-6HR, L.205-6HR
• GBR: F 10
• INA: F 110934, F 110934.1
• JOHN DEERE: 86900821, AA22097, JD 9260, JD10125
• KINZE: A9357, G2-10003, GA 5624
• LINK-BELT: PAS14K205N
• NEW HOLLAND: 86900821, 87650438, 050 775, 195293C91
• OTHERS: GW205GBRF10
• PEER: 205-KRRB2A

Technical Specifications:

• Bearing Type: Insert Ball Bearing with Hexagonal Hole
• Model Designation: 205KRRB2 C3
• Brand: RICH
• Inner Diameter (d) / Hexagonal Bore: 22.25 mm (compatible with 22.225 mm hexagonal shafts)
• Outer Diameter (D): 52 mm
• Inner Ring Width: 25.4 mm
• Outer Ring Width (C): 15 mm
• Clearance: C3 - Greater than Normal
• Outer Ring: Rounded (Crowned)
• Sealing: Double-sided lip seal covered with a plate
• Weight: 0.181 kg
• Country of Manufacture: China

The 205KRRB2 C3 RICH insert ball bearing with a hexagonal hole, meticulously manufactured by RICH in China, is engineered for demanding agricultural and industrial applications requiring robust and reliable performance. This specialized bearing features a 22.25 mm hexagonal bore, allowing for direct mounting on hexagonal shafts, and dimensions of 52 mm outer diameter, 25.4 mm inner ring width, and 15 mm outer ring width. Its C3 clearance, which is greater than normal, accommodates thermal expansion and misalignment, while the rounded (crowned) outer ring minimizes edge stresses for smoother rotation. Equipped with double-sided lip seals covered with plates, this RICH bearing provides superior protection against contaminants, ensuring extended service life even in harsh environments. Weighing 0.181 kg, the 205KRRB2 C3 RICH bearing is an essential component for various machinery, including those from CASE, John Deere, Kinze, and New Holland, offering exceptional durability and efficiency.

Key Performance Advantages:

• Hexagonal Bore: Designed for direct and secure mounting on hexagonal shafts, simplifying assembly and ensuring positive drive.
• C3 Clearance: Provides greater than normal internal clearance, beneficial for high-speed applications or those involving thermal expansion.
• Rounded (Crowned) Outer Ring: Minimizes edge loading and allows for minor misalignment, ensuring smoother operation.
• Double-Sided Lip Seals with Plates: Offers enhanced protection against dust, dirt, and moisture ingress, prolonging bearing life.
• High Durability: Constructed for reliable performance in challenging agricultural and industrial environments.
• RICH Quality: Manufactured in China to high standards, ensuring consistent performance and reliability.
