UKP 209 RICH
The UKP 209 RICH is a cast iron bearing unit with a 45 mm bore and C3 clearance, with a steel cage, with dimensions including 190 mm length and 146 mm mounting hole distance.

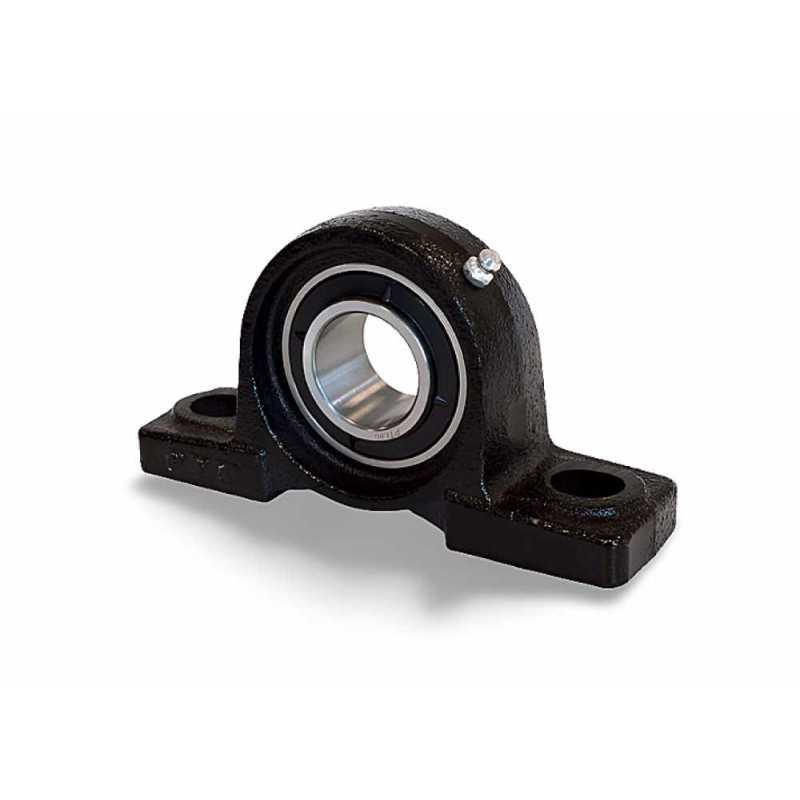

UKP 209 RICH Cast Iron Bearing Unit - 45 mm
Technical Specifications:
- Bearing Type: Cast Iron Bearing Unit without Adapter Sleeve
- Model Designation: UKP 209
- Brand: RICH
- Bore Diameter (d): 45 mm
- Cage: Steel
- Clearance: C3 - greater than normal
- A1: 37 mm
- A: 54 mm
- F2: 106 mm
- F: 54 mm
- J: 146 mm
- L: 190 mm
- N: 17 mm
- Weight: 1.86 kg
- Country of Origin: China
The UKP 209 RICH is a durable cast iron bearing unit without an adapter sleeve, engineered for straightforward mounting in demanding industrial environments. This unit features a 45 mm bore and is built with a robust steel cage and C3 (greater than normal) clearance, making it well-suited for applications with high rotational speeds or elevated temperatures. The solid cast iron housing provides exceptional strength and rigidity, enabling the unit to withstand heavy loads and demanding operational conditions. Manufactured in China, this RICH bearing unit provides a reliable and long-lasting solution for your equipment.
Key Performance Advantages:
- High Durability: The cast iron housing offers superior strength and rigidity.
- C3 Clearance: Ideal for high-speed and high-temperature applications, preventing overheating.
- Structural Integrity: The steel cage ensures enhanced stability under various operating conditions.
- RICH Quality: A dependable and robust component for reliable operation.
