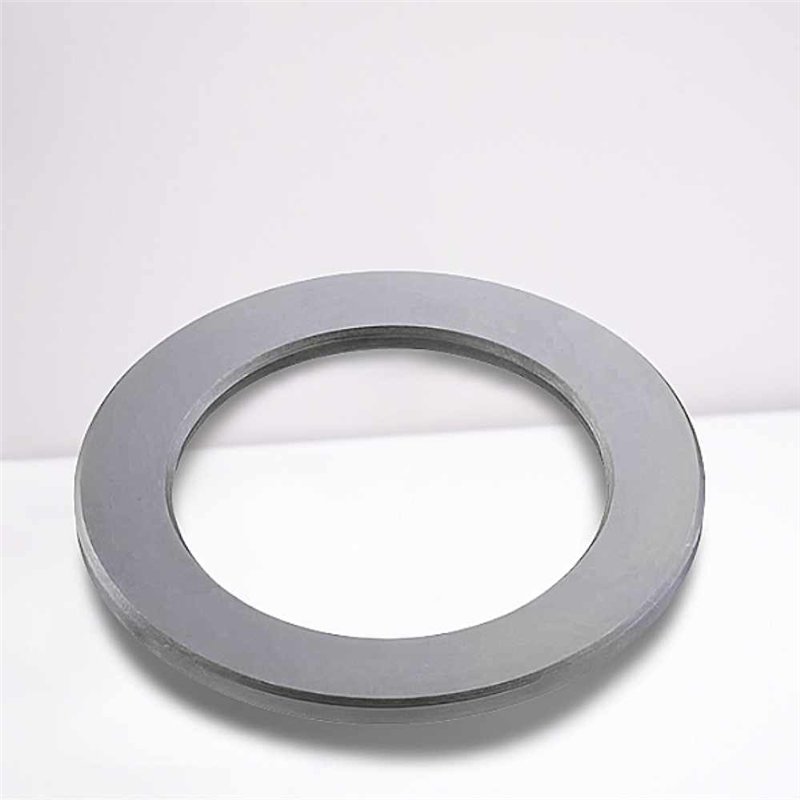

WS 81118 RICH 90x120x6,5

The WS 81118 RICH is an axial bearing washer (90x120x6.5 mm) for use as a shaft raceway in thrust needle roller bearing assemblies.

RICH
WS81118
€4.29
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

WS 81118 RICH Axial Bearing Washer - 90 x 120 x 6.5 mm

Technical Specifications:

  • Brand: RICH
  • Type: Axial Bearing Washer (Shaft Washer)
  • Model: WS 81118
  • Dimensions: 90 x 120 x 6.5 mm
  • Inner Diameter (d): 90 mm
  • Outer Diameter (D): 120 mm
  • Thickness (B): 6.5 mm
  • Weight: 0.26 kg
  • Country of Origin: China

The WS 81118 RICH is a precision axial bearing washer designed to serve as the shaft raceway in an axial bearing arrangement, typically paired with a K-type axial needle roller and cage assembly. Manufactured by RICH, this washer features precise metric dimensions of 90 x 120 x 6.5 mm.

This component is manufactured from high-quality bearing steel, hardened and precision-ground to provide an optimal raceway surface for rolling elements. Its thin cross-section and robust design allow it to support very high axial loads while occupying minimal axial space. The WS 81118 RICH is an essential component for applications in heavy machinery, large gearboxes, and industrial equipment where high load capacity in the thrust direction is required and space conservation is critical.

Key Performance Advantages:

  • High Load Support: Provides a rigid and hardened raceway for high axial loads.
  • Space-Saving Design: Thin profile minimizes axial space requirements.
  • Precision Ground: Ensures smooth, low-friction operation of the axial bearing assembly.
  • Durable Construction: Manufactured from high-quality bearing steel for longevity.

Data sheet

Inner Diameter
90
Outer Diameter
120
Width
6,5
Weight
0,26
Category
Axial Bearing Washer
