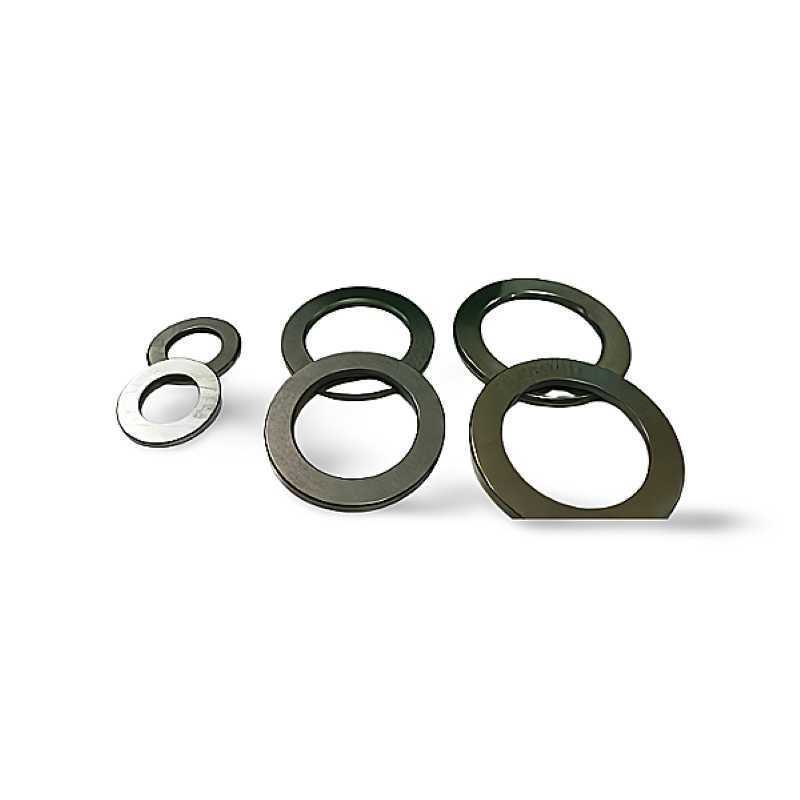

LS 1226 RICH Axial Bearing Washer - 12 x 26 x 2.75 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 1226
  • Brand: RICH
  • Bore Diameter (d): 12 mm
  • Outer Diameter (D): 26 mm
  • Thickness (H): 2.75 mm
  • Weight: 0.008 kg
  • Country of Origin: China

The LS 1226 RICH is a precision-engineered axial bearing washer primarily utilized to provide a hard, smooth raceway surface for axial (thrust) needle roller and cage assemblies. It is an essential component when the surfaces of adjacent machine parts, such as shafts or housings, are not sufficiently hardened or ground to function as a raceway. With dimensions of 12 mm bore, 26 mm outer diameter, and a slim 2.75 mm thickness, the LS 1226 RICH contributes to high axial load support and low friction. This compact washer offers versatility, ensuring reliable performance in demanding thrust applications where restricted axial space is a constraint.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • Axial Load Support: Facilitates smooth operation and high capacity under thrust forces.
  • Space-Saving Design: Slim 2.75 mm thickness is suitable for applications with restricted axial space.
  • Versatility: Can function as either a shaft or housing washer (AS or WS) for thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
12
Outer Diameter
26
Width
2,75
Weight
0,008
Category
Axial Bearing Washer
