LS 3552 RICH 35x52x3,5 LS3552 RICH
search
  • LS 3552 RICH 35x52x3,5 LS3552 RICH

LS 3552 RICH 35x52x3,5

RICH
LS3552
€0.75
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

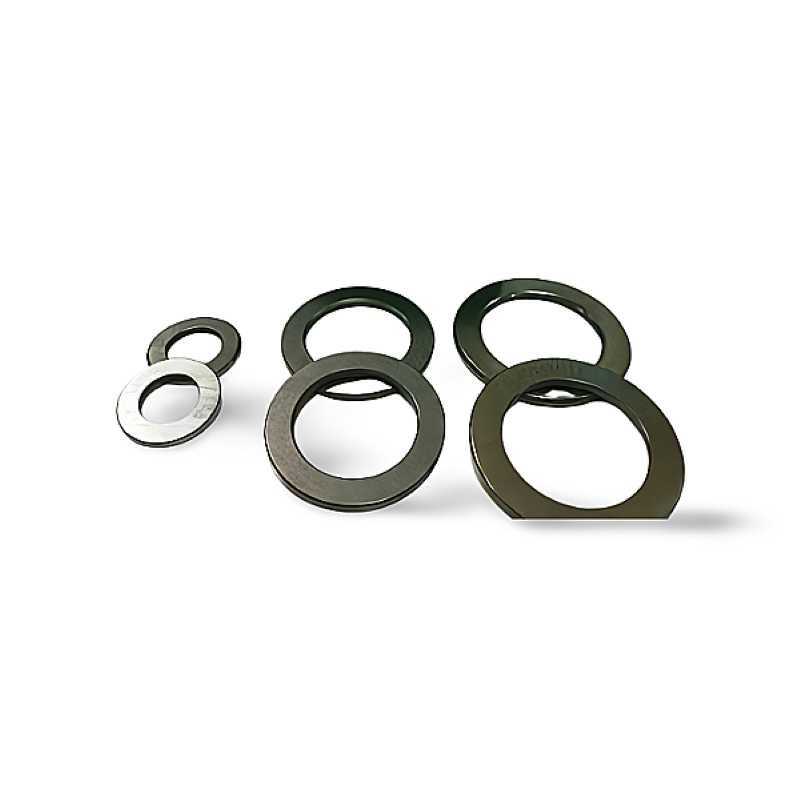

LS 3552 RICH Axial Bearing Washer - 35 x 52 x 3.5 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 3552
  • Brand: RICH
  • Bore Diameter (d): 35 mm
  • Outer Diameter (D): 52 mm
  • Thickness (H): 3.5 mm
  • Weight: 0.03 kg
  • Country of Origin: China

The LS 3552 RICH is a precision-engineered axial bearing washer designed to function as a hardened and finely ground raceway surface. It is essential for use with axial (thrust) needle roller and cage assemblies in applications where the adjacent machine components lack the necessary hardness or finish to act as a proper bearing surface. With dimensions of 35 mm bore, 52 mm outer diameter, and a slim 3.5 mm thickness, the LS 3552 RICH is designed to support substantial axial load capacity while maintaining a compact axial profile. This robust washer ensures low friction and reliable performance in a wide range of thrust applications.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • Axial Load Support: Facilitates smooth operation and high capacity under thrust forces.
  • Space-Saving Design: Slim 3.5 mm thickness is ideal for installations with restricted axial space.
  • Versatility: Can be used as either a shaft or housing washer (AS or WS) for needle roller thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
35
Outer Diameter
52
Width
3,5
Weight
0,03
Category
Axial Bearing Washer
