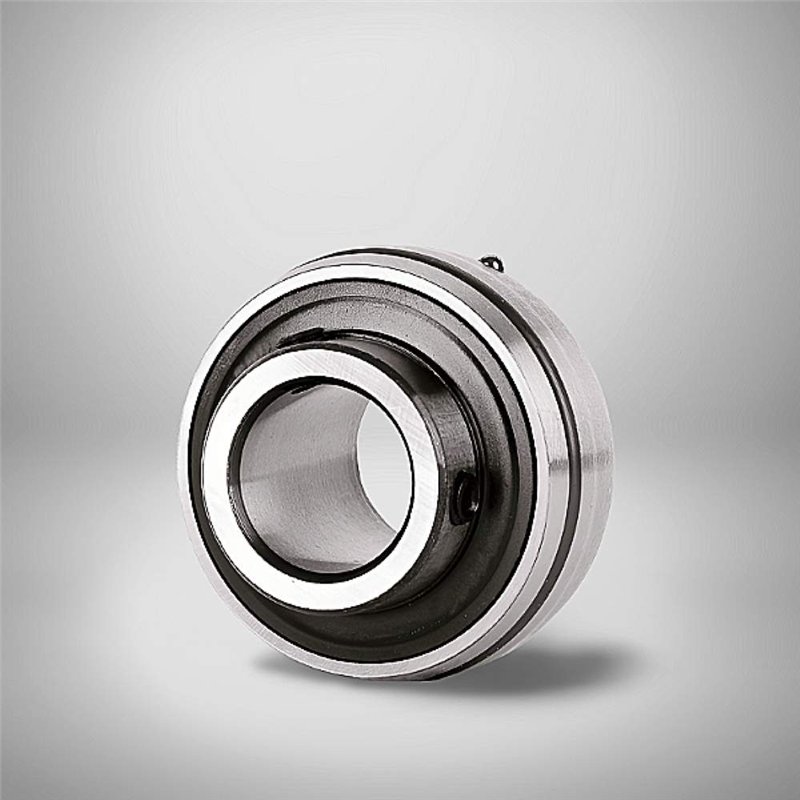

UC212-36 RICH Insert Ball Bearing - Spherical Outer Ring Inch Bore - 57.15 x 110 x 65.1 mm
Technical Specifications:
- Brand: RICH
- Type: Insert Ball Bearing (UC Series)
- Model: UC212-36
- Inner Diameter (d): 57.15 mm
- Outer Diameter (D): 110 mm
- Inner Ring Width: 65.1 mm
- Dimensions: 57.15 x 110 x 65.1 mm
- Outer Ring Width (C): 27 mm
- Rounded Outer Ring: Yes (Misalignment Compensation)
- Sealing: Double-sided lip seal covered with a plate
- Weight: 1.565 kg
- Country of Origin: China
Key Performance Advantages:
- Misalignment Capability: **Spherical outer ring** allows the bearing to compensate for initial shaft misalignment, easing installation.
- Robust Sealing: Integrated **double-sided lip seals** with cover plates ensure maximum protection against dirt and moisture.
- Secure Locking: **Extended inner ring** with setscrews provides simple yet effective locking onto the shaft.
- Inch Bore Fitment: Model UC212-36 is designed for an imperial shaft size (57.15 mm bore).
Transparency Note
The UC212-36 bearing is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable performance.
