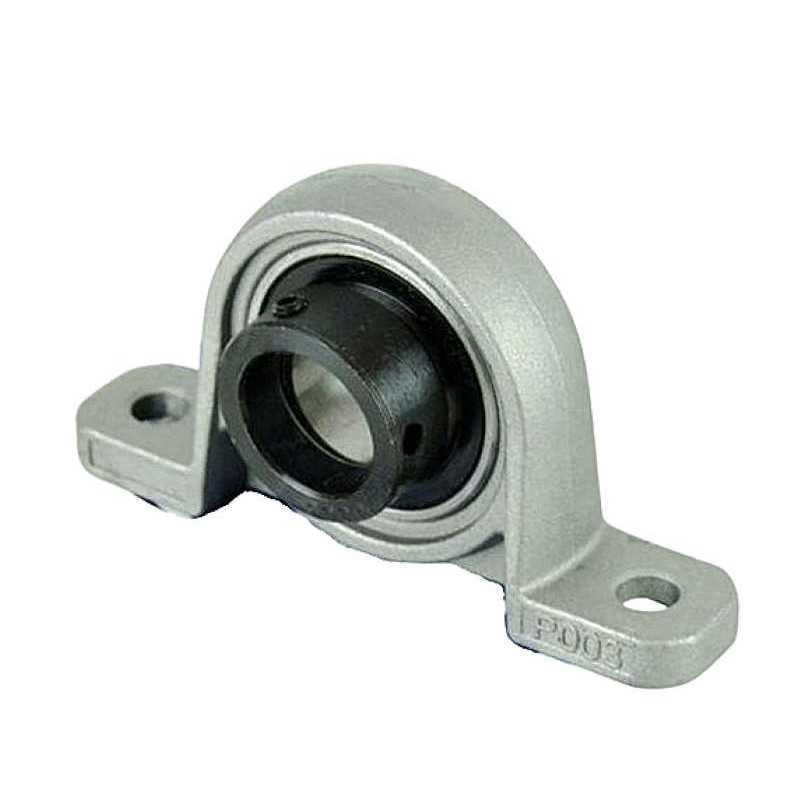

UP003 RICH Pillow Block with Zinc Alloy Housing - 17 mm Shaft Diameter
Technical Specifications:
- Brand: RICH
- Type: Pillow Block with Zinc Alloy Housing (UP Type)
- Model: UP003
- Shaft Diameter (d): 17 mm
- Housing Length (L): 85 mm
- Bolt Hole Spacing (J): 67 mm
- Base Height (A): 18 mm
- Bolt Hole Diameter (N): 7 mm
- Weight: 0.12 kg
- Country of Origin: China
Key Performance Advantages:
- Lightweight Construction: **Zinc alloy housing** reduces weight while providing excellent corrosion resistance.
- Compact Design: Ideal for light-to-medium duty applications where space and weight limitations are critical.
- Easy Mounting: Pillow block design allows for quick, two-bolt mounting on support structures.
- Misalignment Compensation: The bearing insert can accommodate initial static shaft misalignment.
Transparency Note
The UP003 bearing unit is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable performance.
