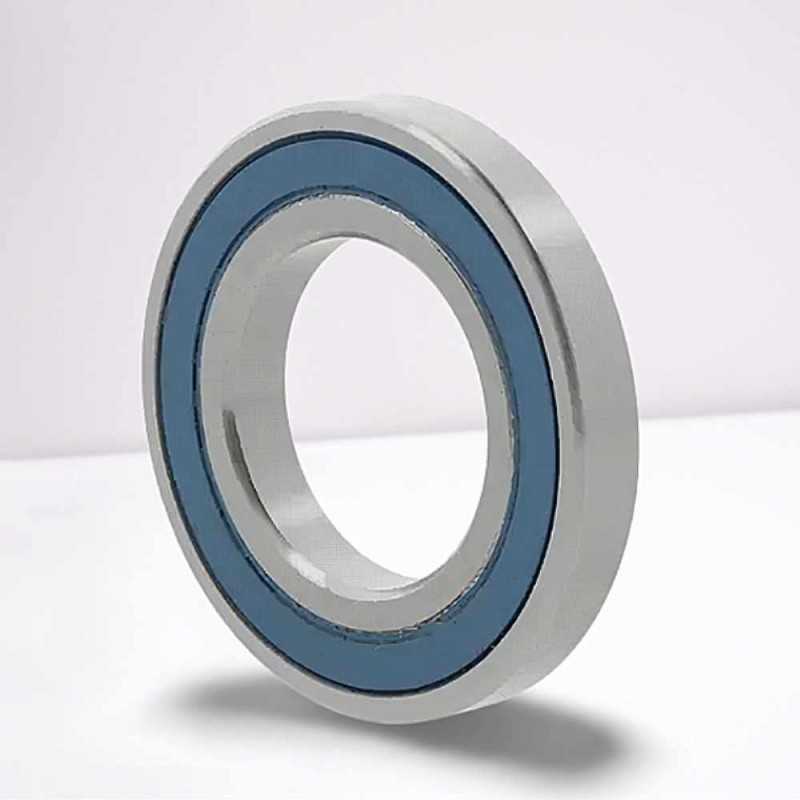

1603 2RS RICH 7,937x22,225x8,731

1603 2RS RICH | Single Row Deep Groove Ball Bearing – 7.937 x 22.225 x 8.731 mm

Technical Specifications:

• Catalog Code: 1603 2RS RICH
• Brand: RICH
• Type: Single Row Deep Groove Ball Bearing
• Inner Diameter (d): 7.937 mm (5/16")
• Outer Diameter (D): 22.225 mm (7/8")
• Width (B): 8.731 mm (11/32")
• Weight: 0.016 kg
• Cage Material: Steel
• Internal Clearance: CN – Normal clearance
• Sealing: Double-sided rubber, contact type (2RS)
• Country of Origin: China

Key Performance Advantages:

• Deep Groove Design: Provides high radial load capacity and smooth rotation.
• Steel Cage: Ensures strength and durability under demanding operating conditions.
• Normal Clearance (CN): Balanced play for general-purpose applications.
• Double Rubber Seals (2RS): Provide effective protection against dust and contaminants while retaining lubrication.
• Compact Inch-Dimension Format: 7.937 mm bore, 22.225 mm outer diameter, and 8.731 mm width, lightweight at only 0.016 kg.
• RICH Quality: Precision manufactured for durability and consistent performance.

Transparency Note: This single row deep groove ball bearing is manufactured directly under the RICH brand. The catalog code 1603 2RS is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.
