  • 2316 K M C3 RICH 80x170x58 2316KMC3 RICH

2316 K M C3 RICH 80x170x58

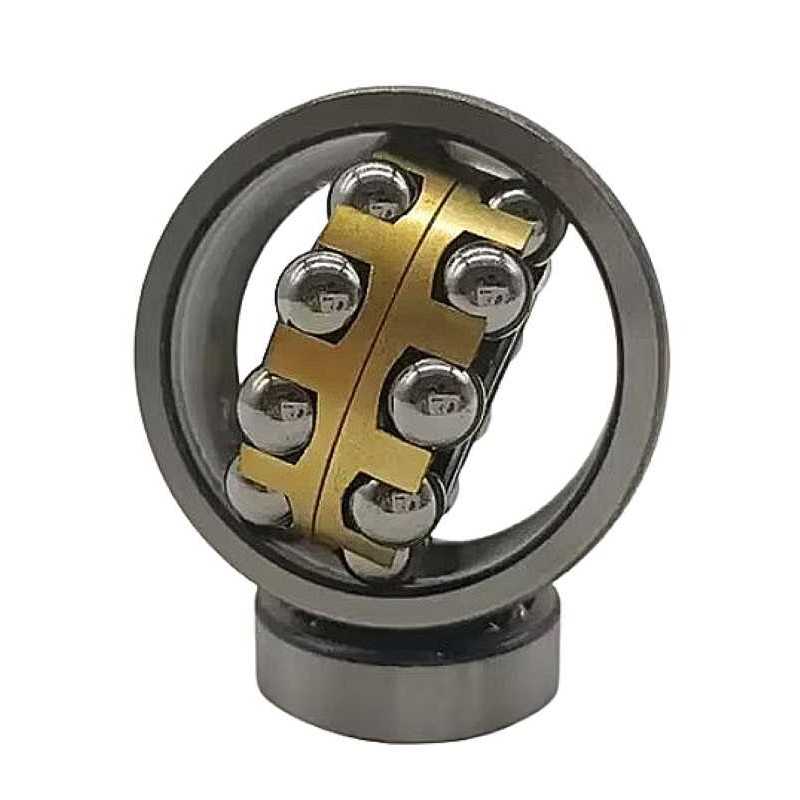

2316 K M C3 RICH Self-Aligning Ball Bearing – dimensions 80 x 170 x 58 mm, brass cage guided by rolling elements, weight 5.809 kg. C3 clearance and tapered bore 1:12 ensure misalignment compensation, high speed capability, and long service life.

RICH
2316KMC3
€52.73
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

2316 K M C3 RICH | Self-Aligning Ball Bearing – 80 x 170 x 58 mm

Technical Specifications:

  • Catalog Code: 2316 K M C3 RICH
  • Brand: RICH
  • Bearing Type: Self-Aligning Ball Bearing
  • Inner Diameter (d): 80 mm
  • Outer Diameter (D): 170 mm
  • Width (B): 58 mm
  • Weight: 5.809 kg
  • Cage: Brass, guided by the rolling elements
  • Clearance: C3 – greater than normal
  • Sealing: None
  • Taper: 1:12
  • Country of Origin: China

Key Performance Advantages:

  • Self-Aligning Design: Automatically compensates for misalignment of the shaft relative to the housing.
  • C3 Clearance: Greater than normal clearance for higher speed and thermal expansion tolerance.
  • Brass Cage: Guided by rolling elements for stability and long service life.
  • Tapered Bore (1:12): Facilitates mounting on adapter sleeves or tapered shafts.
  • High Load Capacity: Suitable for both radial and moderate axial loads.
  • Optimized Dimensions: 80 mm bore, 170 mm outer diameter, 58 mm width.
  • RICH Quality: Precision manufactured for reliability and consistent performance.

Transparency Note: This self-aligning ball bearing is manufactured directly under the RICH brand. The catalog code 2316 K M C3 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.

Data sheet

Inner Diameter
80
Outer Diameter
170
Width
58
Weight
5,8
Clearance
C3 (Greater than Normal)
