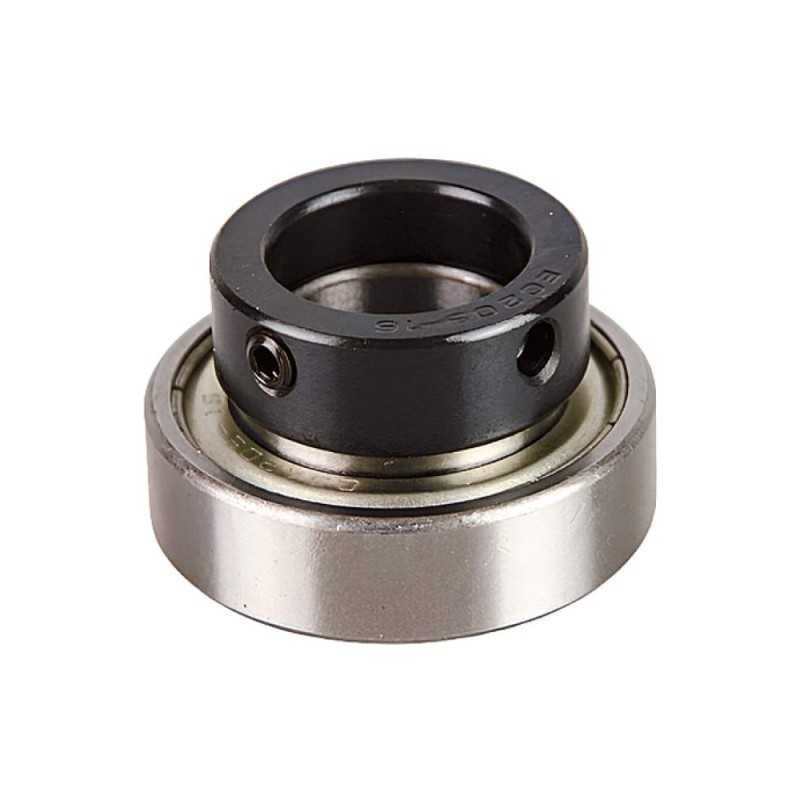

CSA 206-19 RICH Ball Bearing with Flat Outer Ring - 30.163 x 62 x 35.7 mm
Technical Specifications:
- Catalog Code: CSA 206-19 RICH
- Brand: RICH
- Type: Ball bearing with flat outer ring (Cylindrical insert)
- Dimensions: 30.163 x 62 x 35.7 mm
- Inner Diameter (d): 30.163 mm (1-3/16 inch)
- Outer Diameter (D): 62 mm
- Total Width (T): 35.7 mm
- Inner Ring Width: 23.8 mm
- Outer Ring Width (C): 16 mm
- Outer Ring Profile: Cylindrical (Flat) with groove
- Sealing: Double-sided lip seal covered with a plate
- Weight: 0.316 kg
- Country of Origin: China
Key Performance Advantages:
- Cylindrical Outer Design: The flat outer ring is specifically designed for mounting in bore-hole housings where self-alignment is not required.
- Integrated Locking Mechanism: Features a design optimized for securing the inner ring to the shaft, ensuring stable power transmission.
- Advanced Triple Protection: The double-sided lip seals protected by metal plates offer superior defense against dust and contamination.
- Secure Housing Fit: The inclusion of a groove on the outer ring allows for the use of snap rings to prevent axial movement.
Transparency Note: This product is manufactured under the RICH brand. The code CSA 206-19 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.
