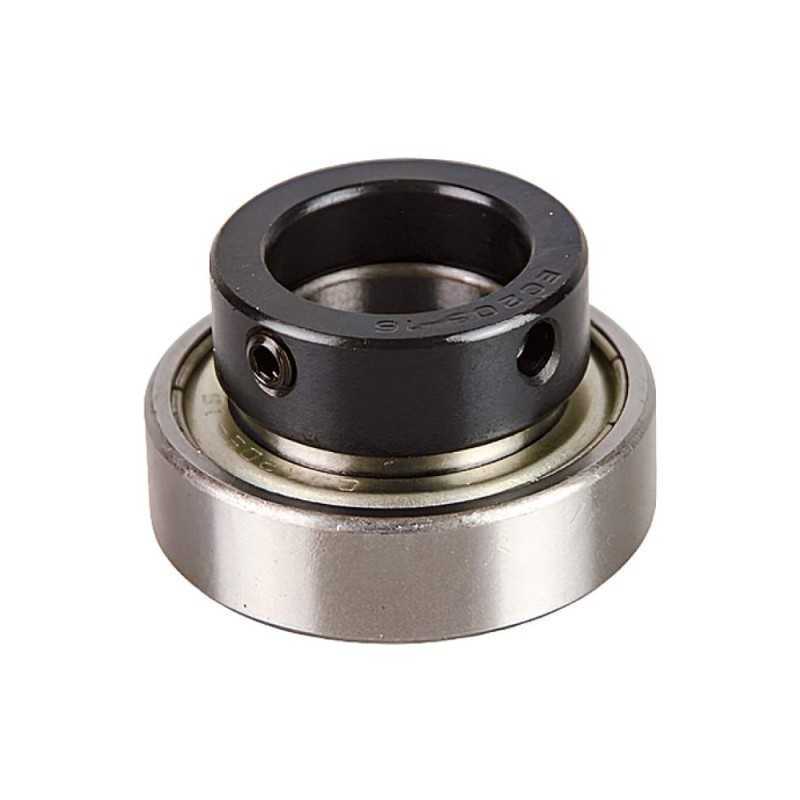

CSB 205-16 RICH | Ball Bearing with Flat Outer Ring – 25.4 x 52 x 27 mm

Technical Specifications:

  • Catalog Code: CSB 205-16 RICH
  • Brand: RICH
  • Bearing Type: Ball Bearing with Flat Outer Ring
  • Inner Diameter (d): 25.4 mm
  • Outer Diameter (D): 52 mm
  • Total Width (T): 27 mm
  • Inner Ring Width: 27 mm
  • Outer Ring Width (C): 15 mm (insert bearing)
  • Outer Ring Profile: Cylindrical (not rounded)
  • Groove on Outer Ring: Yes
  • Weight: 0.172 kg
  • Cage: Steel
  • Sealing: Double-sided lip seal covered with a plate
  • Country of Origin: China

Key Performance Advantages:

  • Flat Outer Ring: Cylindrical profile for secure seating in housings.
  • Snap Ring Groove: Facilitates axial location in the housing.
  • Double Lip Seals: Covered with a plate for enhanced protection against contaminants and grease retention.
  • Steel Cage: Provides durability and stability under demanding operating conditions.
  • Optimized Dimensions: 25.4 mm bore, 52 mm outer diameter, 27 mm total width.
  • Insert Bearing Execution: Outer ring width 15 mm, designed for mounting in flat housings.
  • RICH Quality: Precision manufactured for reliability and consistent performance.

Transparency Note: This ball bearing with flat outer ring is manufactured directly under the RICH brand. The catalog code CSB 205-16 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.

Data sheet

Inner Diameter
25,4
Outer Diameter
52
Width
27
Weight
0,172
Category
Ball Bearing with Flat Outer Ring
