H 2307 RICH 30x35x43 H2307 RICH
search
  • H 2307 RICH 30x35x43 H2307 RICH

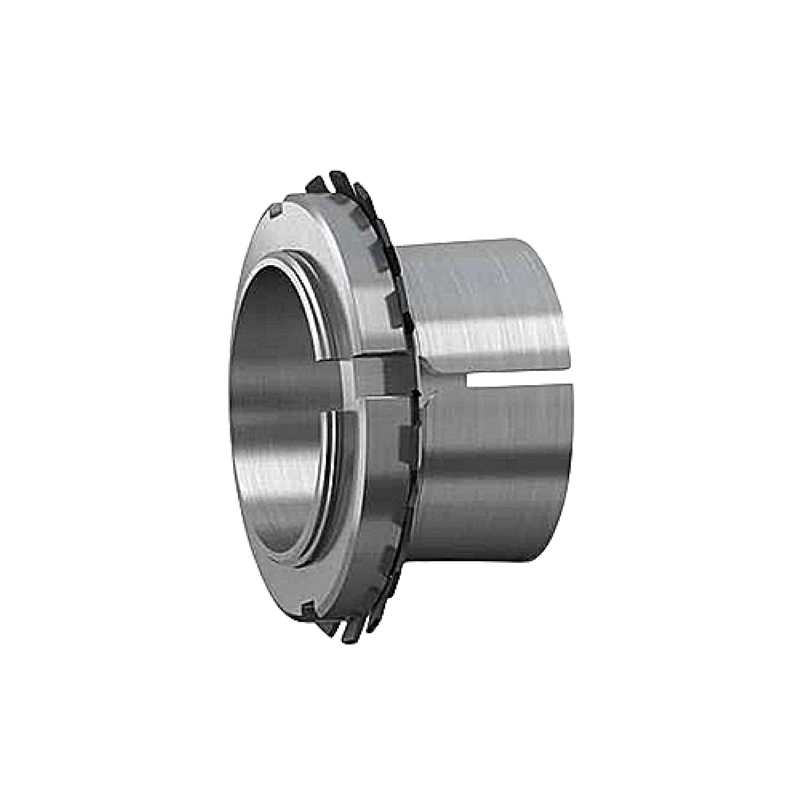

H 2307 RICH 30x35x43

Type: Adapter Sleeve
Model: H 2307 RICH
Dimensions: 30 x 35 x 43 mm
Components: Sleeve, Nut, and Lock Washer
Brand: RICH
Origin: China
RICH
H2307
€2.49
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

H 2307 RICH Adapter Sleeve - 30 x 35 x 43 mm

Technical Specifications:

  • Catalog Code: H 2307 RICH
  • Brand: RICH
  • Type: Adapter sleeve for tapered bore bearings
  • Shaft Diameter (d1): 30 mm
  • Bore Diameter (d): 35 mm
  • Width (B1): 43 mm
  • Weight: 0.182 kg
  • Country of Origin: China

Key Performance Advantages:

  • Superior Friction-Locked Security: The RICH brand ensures a high-strength interference fit between the shaft and the bearing, preventing unwanted axial movement even under intense operational vibrations.
  • Extended Load Distribution: With a 43 mm width, this sleeve offers an expanded surface area for clamping, which reduces localized stress on the shaft and enhances the overall rigidity of the assembly.
  • Precise Internal Clearance Control: The tapered design allows for the accurate setting of the bearing internal radial clearance during installation by adjusting the torque applied to the lock nut.
  • Integrated Security Components: This unit is supplied as a complete set, including the slotted adapter sleeve, a precision-threaded lock nut, and a multi-tab locking washer to prevent loosening.
  • Cost-Effective Engineering: Designed for use on standard smooth or stepped cylindrical shafts, it eliminates the need for expensive shaft machining such as shoulders or specialized threading.

Transparency Note: This component is manufactured under the RICH brand. The code H 2307 is used for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
35
Width
43
Category
Adapter Sleeve
