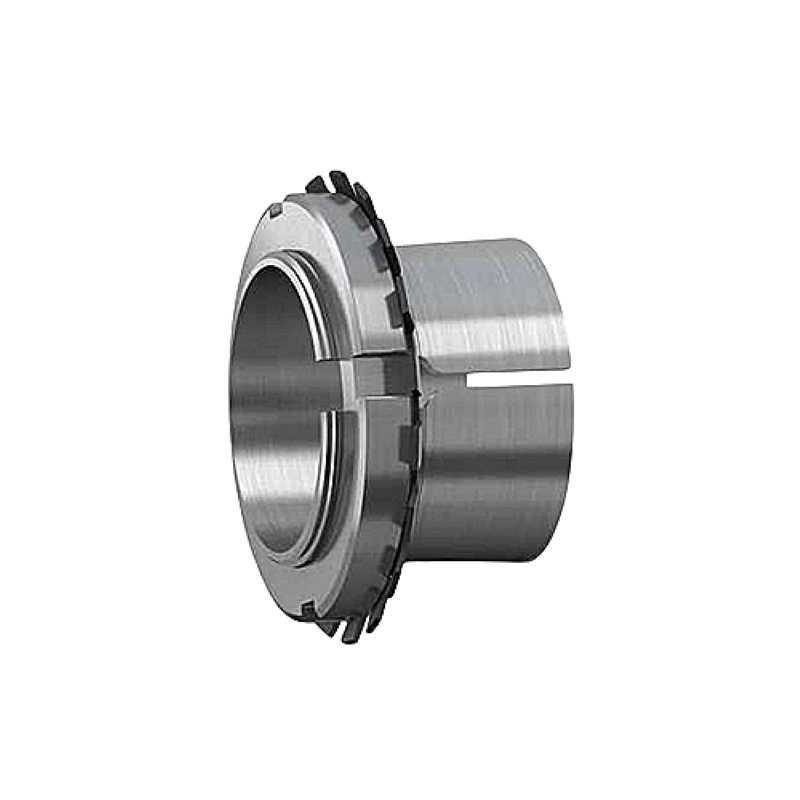

H 306 RICH 25x30x31 H306 RICH
zoom_out_map
H 306 RICH 25x30x31 H306 RICH

H 306 RICH 25x30x31

Type: Adapter Sleeve
Model: H 306 RICH
Dimensions: 25 x 30 x 31 mm
Components: Sleeve, Nut, and Lock Washer
Brand: RICH
Origin: China
RICH
H306
€1.69
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

H 306 RICH Adapter Sleeve - 25 x 30 x 31 mm

Technical Specifications:

  • Catalog Code: H 306 RICH
  • Brand: RICH
  • Type: Adapter sleeve for tapered bore bearings
  • Shaft Diameter (d1): 25 mm
  • Bore Diameter (d): 30 mm
  • Width (B1): 31 mm
  • Weight: 0.111 kg
  • Country of Origin: China

Key Performance Advantages:

  • High-Strength Shaft Grip: The H 306 RICH provides a uniform and powerful clamping force around the 25 mm shaft, ensuring that the bearing remains securely fixed during high-speed rotations and under heavy radial loads.
  • Precise Internal Clearance Control: This sleeve allows for the accurate adjustment of the bearing's internal radial clearance during installation. By driving the bearing up the tapered surface, users can achieve the optimal fit for their specific application.
  • Full Mounting Assembly: Each unit is supplied as a complete set, including the slotted adapter sleeve, a precision-threaded lock nut, and a reliable locking washer to prevent the nut from loosening under vibration.
  • Simplified Engineering: Designed for use on commercial-grade smooth shafts, this sleeve eliminates the need for expensive machined shoulders or threading on the shaft itself, reducing overall maintenance costs.
  • Robust Steel Construction: Manufactured from high-tensile steel to resist wear and deformation, ensuring a long service life and the capability for the component to be reused after proper inspection.

Transparency Note: This bearing is manufactured under the RICH brand. The code H 306 is used solely for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
30
Width
31
