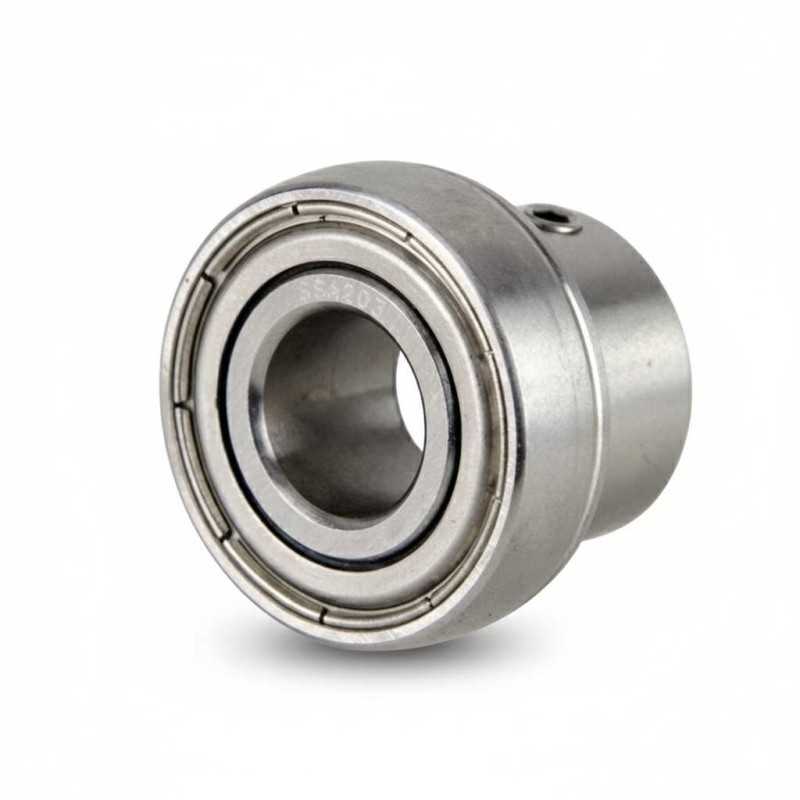

SS SA203 G RICH 17x40x28,5 SSSA203G RICH
zoom_out_map
SS SA203 G RICH 17x40x28,5 SSSA203G RICH

SS SA203 G RICH 17x40x28,5

Type: Stainless Steel Insert Ball Bearing
Model: SS SA203 G RICH
Dimensions: 17 x 40 x 28.5 mm
Brand: RICH
Origin: China
RICH
SSSA203G
€7.14
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SS SA203 G RICH – Stainless Steel Insert Ball Bearing – 17 x 40 x 28.5 mm

Technical Specifications:

  • Type: Insert ball bearing
  • Product Feature: Stainless steel (Corrosion resistant)
  • Brand: RICH
  • Model Designation: SS SA203 G
  • Inner Diameter (d): 17 mm
  • Outer Diameter (D): 40 mm
  • Total Width (T): 28.5 mm
  • Inner Ring Width (B): 30.2 mm
  • Outer Ring Width (C): 12 mm
  • Outer Ring Profile: Rounded (Spherical)
  • Sealing: Double-sided lip seal with protective cover plate
  • Weight: 0.11 kg
  • Country of Origin: China

Performance Characteristics:

  • Material Excellence: Engineered from high-grade stainless steel to provide exceptional resistance to oxidation and corrosive agents, ideal for food processing or chemical environments.
  • Structural Configuration: Features a spherical outer ring profile designed to accommodate initial static misalignment within the housing unit.
  • Protection Mechanism: Equipped with a robust double-sided lip seal system reinforced by protective plates to prevent contaminant ingress and ensure lubricant retention.
  • Mechanical Interface: 17 x 40 x 28.5 mm dimensional format manufactured to rigorous industrial tolerances for stable fitment and reliable operation in corrosive conditions.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
17
Outer Diameter
40
Width
28,5
Category
Stainless Steel Insert Ball Bearing
