UCF 309 RICH

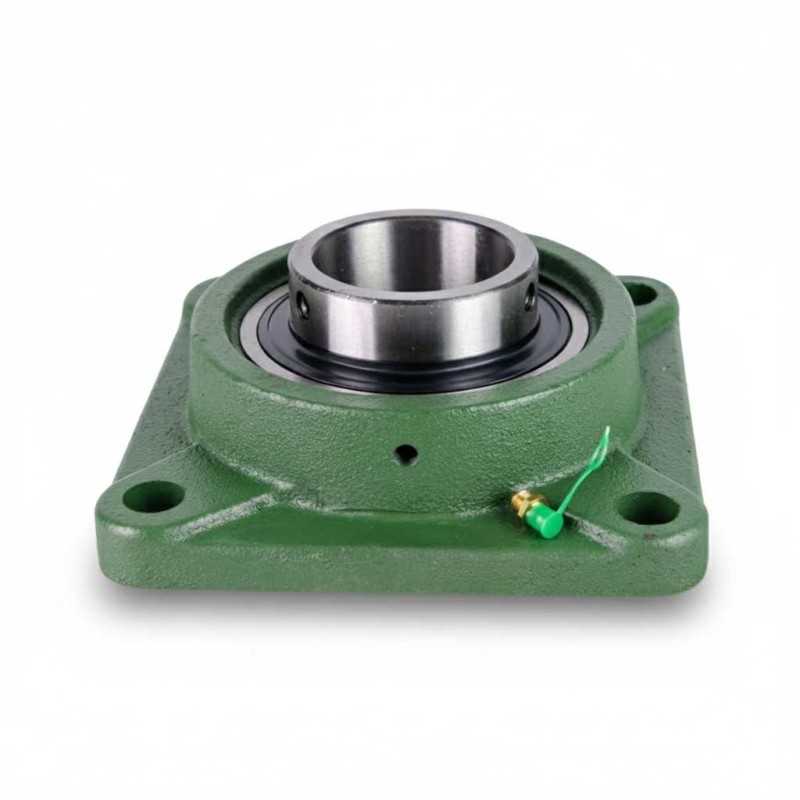

UCF 309 RICH – Cast Iron Flange Bearing Unit – 45 mm Bore

Technical Specifications:

• Type: Cast iron flange bearing unit
• Brand: RICH
• Model Designation: UCF 309
• Shaft Diameter (d): 45 mm
• Housing Length (L): 160 mm
• Mounting Hole Distance (J): 125 mm
• Housing Width (A): 44 mm
• Flange Thickness (A1): 18 mm
• Mounting Hole Diameter (N): 19 mm
• Housing Material: Rigid cast iron
• Weight: 3.3 kg
• Country of Origin: China

Construction Features:

• Heavy-Duty Square Flange: This unit features a high-strength cast iron housing designed for the 300-series load class, offering superior support for shafts subjected to heavy radial stress.
• Stable 4-Hole Mounting: The precision-engineered square flange incorporates four mounting holes, providing a secure and balanced attachment to industrial frames and structures.
• Self-Aligning Geometry: Equipped with a ball bearing insert that features a spherical outer ring, allowing the unit to compensate for static shaft misalignment during installation.
• Integrated Maintenance System: Includes a built-in grease nipple for simple relubrication, ensuring smooth performance and a long service life even in challenging work environments.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
