PFL203 RICH

Type: Pressed Steel Oval Flange Housing
Model: PFL203 RICH
Bolt Hole Distance: 63.5 mm
Flange Thickness (A): 4 mm
Brand: RICH
Origin: China
RICH
PFL203
€0.72
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

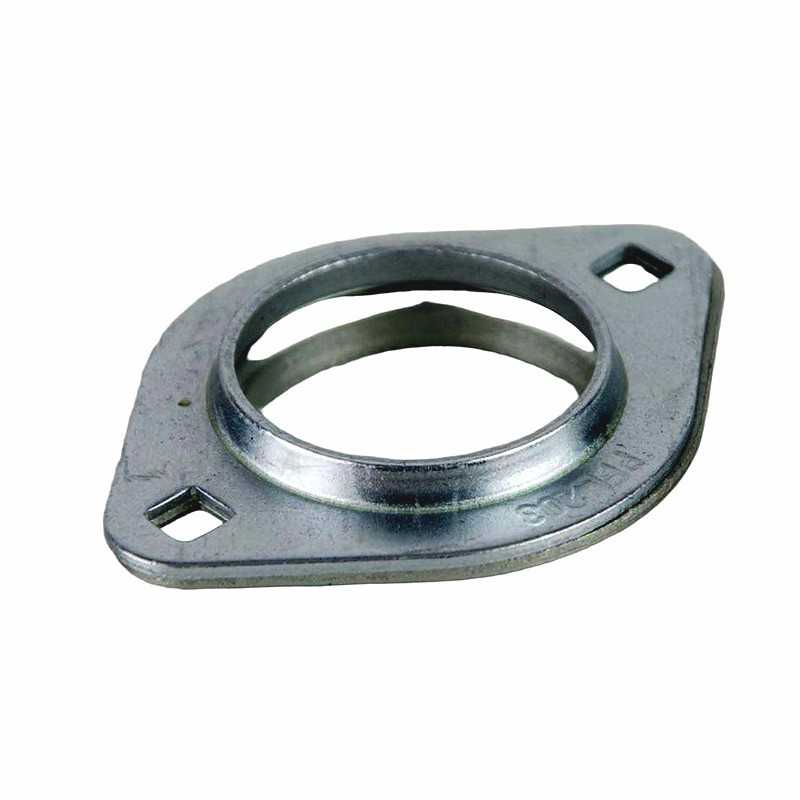

PFL203 RICH Pressed Steel Oval Flange Housing - 81 mm Length

Technical Specifications:

  • Catalog Code: PFL203 RICH
  • Brand: RICH
  • Type: Pressed steel housing (Two-piece oval flange)
  • Total Length (L): 81 mm
  • Bolt Hole Distance (J): 63.5 mm
  • Housing Width (L2): 58.7 mm
  • Flange Thickness (A): 4 mm
  • Total Width (A1): 6.7 mm
  • Bolt Hole Size (N): 7.1 mm
  • Weight: 0.07 kg
  • Country of Origin: China

Product Overview:

The PFL203 RICH is an ultra-lightweight, two-piece pressed steel oval flange housing designed for light-duty industrial and agricultural applications. This housing is engineered to accommodate standard 203 series insert bearings (typically with a 17 mm bore). The "PFL" series features a compact, two-bolt oval shape that is ideal for mounting on vertical or horizontal surfaces where space is limited. The housing is constructed from two stamped steel plates that sandwich the bearing, providing a secure and cost-effective mounting solution. Its spherical internal profile allows the inserted bearing to self-align, effectively compensating for minor shaft misalignments. Due to its slim 4 mm flange thickness and weight of only 0.07 kg, it is a preferred choice for light conveyors, small ventilation units, and specialized agricultural equipment where heavy cast iron housings are unnecessary.

Key Performance Advantages:

  • Space-Saving Oval Design: The two-bolt flange configuration allows for secure mounting in tight mechanical spaces.
  • Self-Alignment Compatibility: Supports the self-aligning capabilities of spherical insert bearings to reduce internal stress and friction.
  • Lightweight Construction: Minimizes the overall weight of the machinery, making it ideal for portable or light-duty equipment.
  • Durable Steel Build: High-quality pressed steel provides reliable structural integrity for moderate load requirements.

Transparency Note: This housing is manufactured under the RICH brand. The code PFL203 is used for identification purposes and does not imply affiliation with other manufacturers.
