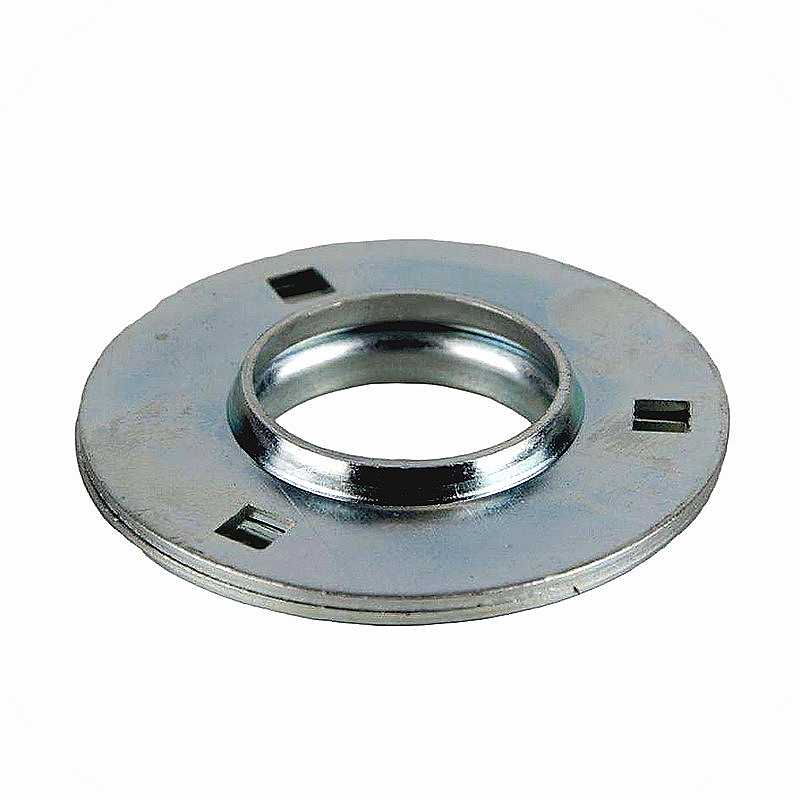

The PF203 RICH is a lightweight, circular flange housing manufactured from high-tensile pressed steel. Designed to accommodate 203 series insert bearings (typically with a 17 mm bore), this "PF" series housing consists of two interlocking stamped steel plates that form a secure cradle for the bearing. The round, multi-bolt configuration provides uniform load distribution around the housing circumference, making it highly stable for light-duty radial applications. Its slim 2 mm flange thickness allows for a very low profile, ideal for mounting on sheet metal walls or in narrow machine compartments. The internal seating is spherically profiled to support the self-alignment of the insert bearing, effectively compensating for minor shaft misalignments or mounting inaccuracies. This housing is widely used in light conveyors, textile machinery, and food processing equipment where a compact, cost-effective flange solution is required.
Transparency Note: This housing is manufactured under the RICH brand. The code PF203 is used for identification purposes and does not imply affiliation with other manufacturers.
