81232 M RICH 160x225x51

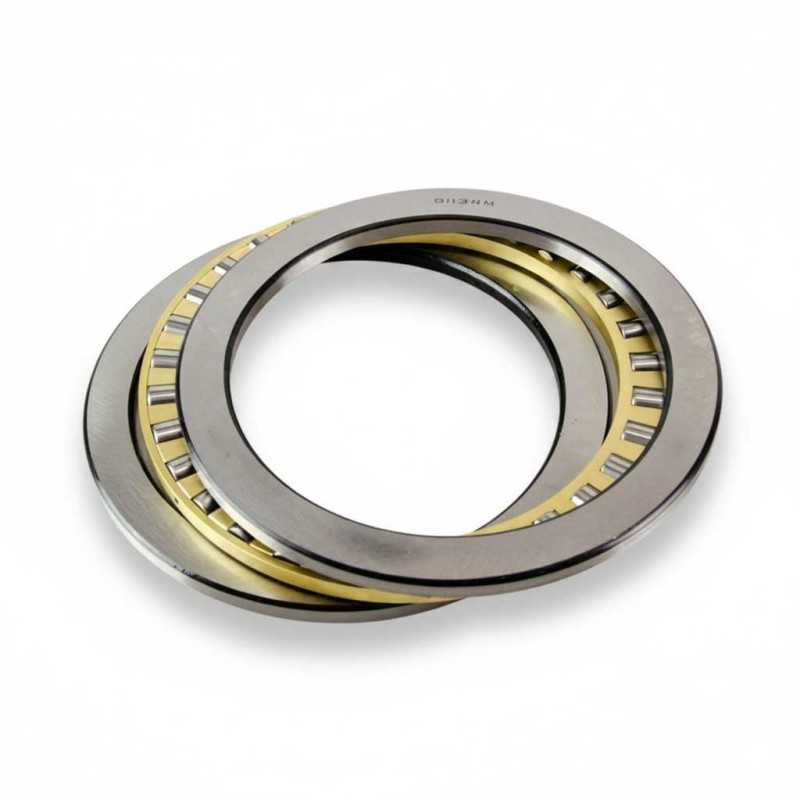

81232 M RICH – Axial Cylindrical Roller Bearing – 160 x 225 x 51 mm

Technical Specifications:

• Type: Axial cylindrical roller bearing
• Brand: RICH
• Model Designation: 81232.M
• Inner Diameter (d): 160 mm
• Outer Diameter (D): 225 mm
• Total Height (H): 51 mm
• Cage Material: Machined brass (Rolling element guided)
• Weight: 6.576 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Thrust bearing assembly consisting of a cylindrical roller and cage set, a shaft washer, and a housing washer.
• Cage Specification: Features a high-strength machined brass cage (M) guided by the rolling elements, offering maximum stability and heat resistance in heavy industrial environments.
• Load Management: Specifically engineered to support exceptionally high axial loads in a single direction with extreme mechanical stiffness.
• Mechanical Interface: 160 x 225 x 51 mm dimensional format produced to standardized industrial tolerances for heavy-duty machinery and rotating equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
