GE 50 FO-2RS RICH 50x90x56 GE50FO-2RS RICH
zoom_out_map
GE 50 FO-2RS RICH 50x90x56 GE50FO-2RS RICH

GE 50 FO-2RS RICH 50x90x56

Type: Spherical Plain Bearing
Model: GE 50 FO-2RS RICH
Bore: 50 mm
Sealing: 2RS Rubber Seals
Brand: RICH
Origin: China
RICH
GE50FO-2RS
€15.04
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

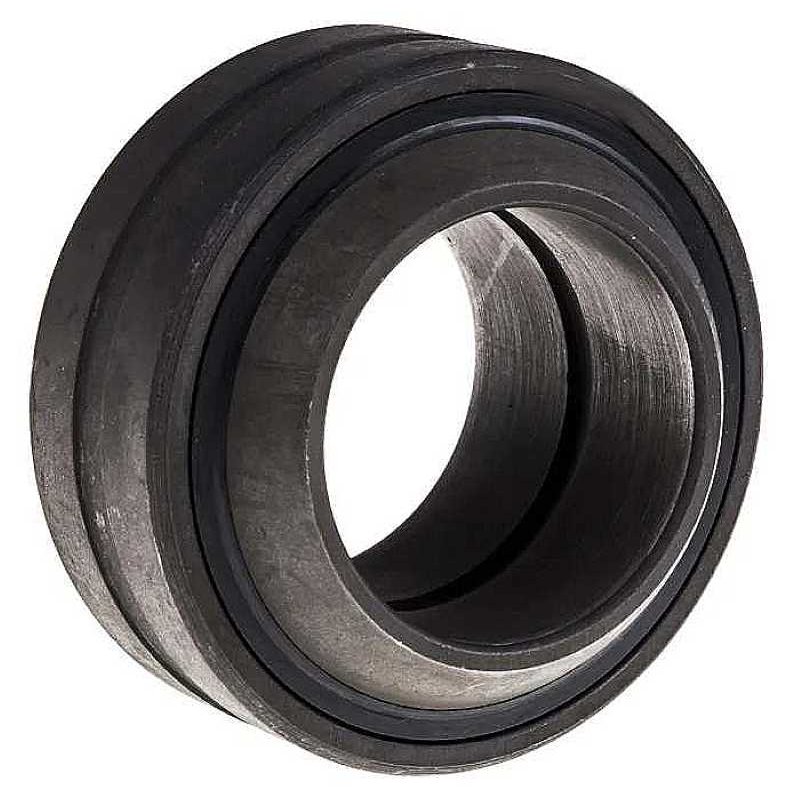

GE 50 FO-2RS RICH Spherical Plain Bearing - 50 x 90 x 56 mm

Technical Specifications:

  • Catalog Code: GE 50 FO-2RS RICH
  • Brand: RICH
  • Type: Spherical plain bearing (Radial)
  • Dimensions: 50 x 90 x 56 mm
  • Inner Diameter (d): 50 mm
  • Outer Diameter (D): 90 mm
  • Inner Ring Width (B): 56 mm
  • Outer Ring Width (C): 36 mm
  • Friction Pair: Steel/Steel
  • Sealing: 2RS (Double-sided rubber contact seals)
  • Weight: 1.42 kg
  • Country of Origin: China

Key Performance Advantages:

  • Extended Inner Ring (FO): The wider inner ring design provides an increased tilting angle, allowing for greater misalignment handling in heavy-duty linkages without the need for additional spacers.
  • Heavy-Duty Load Support: The steel-on-steel friction pair is specifically engineered to accommodate high static loads, alternating loads, and shock stresses.
  • Enhanced Protection: Integrated 2RS contact seals on both sides protect the spherical sliding surfaces from dust, moisture, and abrasive contaminants.
  • Maintenance Ready: Features a circumferential lubrication groove and holes in both the inner and outer rings to ensure consistent grease distribution and longer service life.

Transparency Note: This product is manufactured under the RICH brand. The code GE 50 FO-2RS is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
90
Width
56
Sealing
Lip Seal On Both Sides
Category
Spherical Plain Bearing
