SS-UK 207 RICH 30x72x29 SS-UK207 RICH
zoom_out_map
SS-UK 207 RICH 30x72x29 SS-UK207 RICH

SS-UK 207 RICH 30x72x29

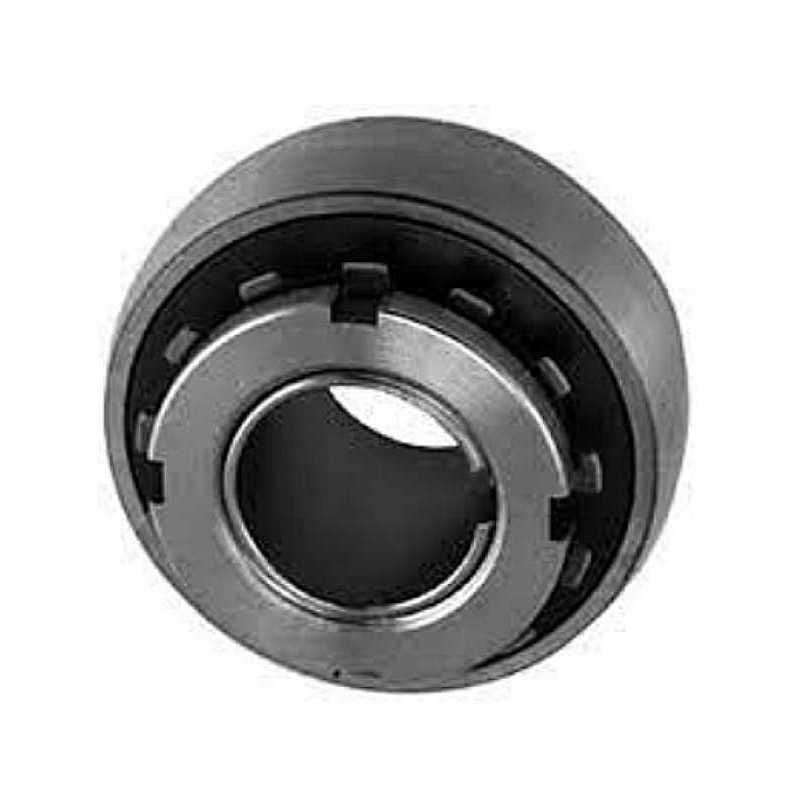

SS-UK 207 RICH Stainless Steel Insert Ball Bearing with Conical Hole – dimensions 30 x 72 x 29 mm, weight 0.374 kg. Taper 1:12, rounded outer ring, stainless steel construction for durability and secure mounting.

RICH
SS-UK207
€19.83
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SS-UK 207 RICH | Insert Ball Bearing with Conical Hole (Stainless Steel) – 30 x 72 x 29 mm

Technical Specifications:

  • Catalog Code: SS-UK 207 RICH
  • Brand: RICH
  • Bearing Type: Insert Ball Bearing with Conical Hole
  • Material Feature: Stainless Steel
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 72 mm
  • Total Width (T): 43 mm
  • Inner Ring Width: 29 mm
  • Outer Ring Width (C): 20 mm
  • Weight: 0.374 kg
  • Rounded Outer Ring: Yes
  • Taper: 1:12
  • Country of Origin: China

Key Performance Advantages:

  • Conical Bore Design: Ensures secure mounting with adapter sleeves.
  • Stainless Steel Feature: Enhanced corrosion resistance and durability in demanding environments.
  • Rounded Outer Ring: Facilitates alignment in housings and reduces stress concentrations.
  • Taper 1:12: Standardized taper for reliable fit and interchangeability.
  • Optimized Dimensions: 30 mm bore, 72 mm outer diameter, 43 mm total width.
  • RICH Quality: Precision manufactured for consistent performance and long service life.

Transparency Note: This stainless steel insert ball bearing with conical hole is manufactured directly under the RICH brand. The catalog code SS-UK 207 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand.

Data sheet

Inner Diameter
30
Outer Diameter
72
Width
29
Weight
0,374
