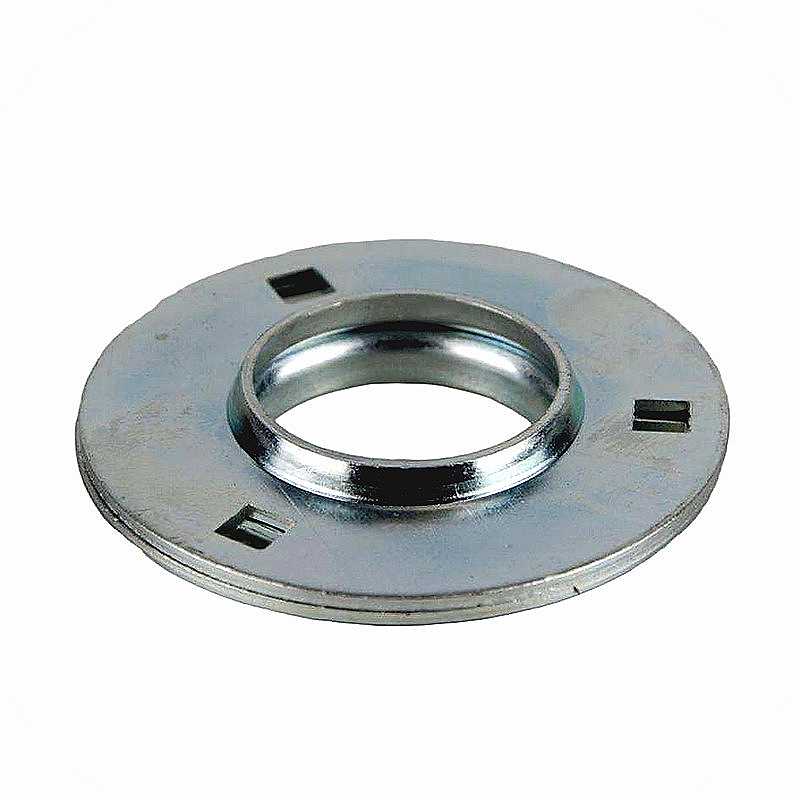

PF210 RICH PF210 RICH
zoom_out_map
PF210 RICH PF210 RICH

PF210 RICH

Type: Pressed Steel Round Flange Housing
Model: PF210 RICH
Outer Diameter (D): 155.6 mm
Bolt Circle (D2): 127 mm
Brand: RICH
Origin: China
RICH
PF210
€4.27
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

PF210 RICH Pressed Steel Round Flange Housing - 155.6 mm Diameter

Technical Specifications:

  • Catalog Code: PF210 RICH
  • Brand: RICH
  • Type: Pressed steel housing (Two-piece round flange)
  • Outer Diameter (D): 155.6 mm
  • Bolt Circle Diameter (D2): 127 mm
  • Total Width (A): 10.5 mm
  • Flange Thickness (A1): 4 mm
  • Bolt Hole Size (N): 13.5 mm
  • Weight: 0.828 kg
  • Country of Origin: China

Product Overview:

The PF210 RICH is a heavy-duty circular flange housing manufactured from high-tensile pressed steel. This model is specifically engineered to accommodate 210 series insert bearings, which typically feature a 50 mm bore diameter. The housing consists of two interlocking stamped steel plates that form a robust yet lightweight mounting solution for large-diameter shafts. Its round configuration with a 127 mm bolt circle provides balanced support and uniform distribution of radial loads, preventing localized stress on the mounting surface. The internal seating area is spherically profiled, allowing the inserted bearing to self-align and effectively compensate for minor shaft misalignments or mounting inaccuracies. With an outer diameter of 155.6 mm and a weight of 0.828 kg, the PF210 is an ideal choice for heavy-duty agricultural equipment, industrial material handling systems, and large fan assemblies where space optimization and weight reduction are critical factors.

Key Performance Advantages:

  • Balanced Load Distribution: The circular flange design ensures even stress transfer to the machine frame, enhancing the longevity of the assembly.
  • Self-Alignment Support: Precision-stamped internal curves facilitate the swiveling motion of spherical insert bearings to maintain optimal shaft performance.
  • High Strength-to-Weight Ratio: Offers the structural integrity required for 50 mm bore applications while remaining significantly lighter than cast iron.
  • Versatile Installation: The slim 4 mm flange thickness allows for integration into compact designs where axial space is at a premium.

Transparency Note: This housing is manufactured under the RICH brand. The code PF210 is used for identification purposes and does not imply affiliation with other manufacturers.
