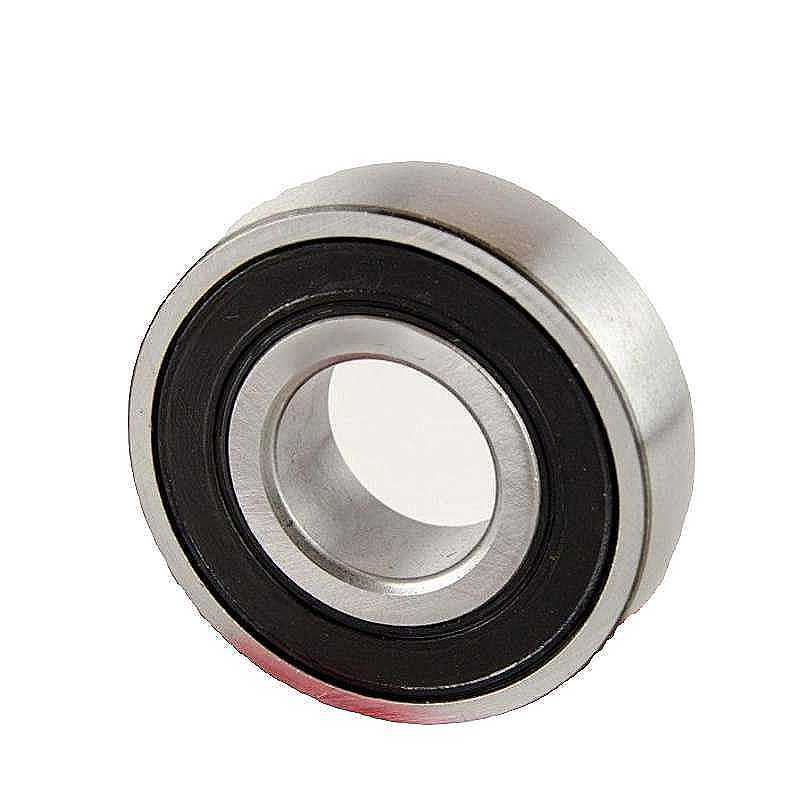

CS209-2RS RICH 45x85x19 CS209-2RS RICH
zoom_out_map
CS209-2RS RICH 45x85x19 CS209-2RS RICH

CS209-2RS RICH 45x85x19

Type: Insert Ball Bearing
Model: CS209-2RS RICH
Bore: 45 mm
Interchange: JOHN DEERE AZ23315
Brand: RICH
Origin: China
RICH
CS209-2RS
€4.26
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

CS209-2RS RICH Insert Ball Bearing - 45 x 85 x 19 mm

OE Reference / Interchange:

  • CAPELLO: 02103200
  • CLAAS: 212102.0
  • CNH: 340411240
  • JOHN DEERE: AZ23315
  • MASSEY FERGUSON: LA340411277

Technical Specifications:

  • Catalog Code: CS209-2RS RICH
  • Brand: RICH
  • Type: Insert ball bearing (Radial)
  • Dimensions: 45 x 85 x 19 mm
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 85 mm
  • Outer Ring Width (C): 19 mm
  • Outer Ring Profile: Rounded / Spherical
  • Sealing: 2RS (Double-sided rubber contact seals)
  • Weight: 0.407 kg
  • Country of Origin: China

Key Performance Advantages:

  • High-Precision Interchange: Developed as a reliable alternative for major agricultural brands including John Deere, Claas, and Capello.
  • Self-Aligning Geometry: The spherical outer ring enables the bearing to adjust for shaft misalignment, reducing internal stress and extending operational life.
  • Robust Contact Sealing: The 2RS rubber seals are specifically designed to block the ingress of dust, crop residue, and moisture in outdoor environments.
  • Optimized Load Capacity: Built with high-quality steel to handle significant radial loads in heavy-duty agricultural drive systems.

Transparency Note: This product is manufactured under the RICH brand. The code CS209-2RS and the listed OE references are used for identification and interchange purposes and do not imply affiliation with the original equipment manufacturers.

Data sheet

Inner Diameter
45
Outer Diameter
85
Width
19
Sealing
Lip Seal On Both Sides
