29436 M RICH 180x360x109

Type: Spherical Roller Thrust Bearing
Model: 29436 M RICH
Dimensions: 180 x 360 x 109 mm
Cage: Machined Brass (M)
Brand: RICH
Origin: China
RICH
29436M
€457.21
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

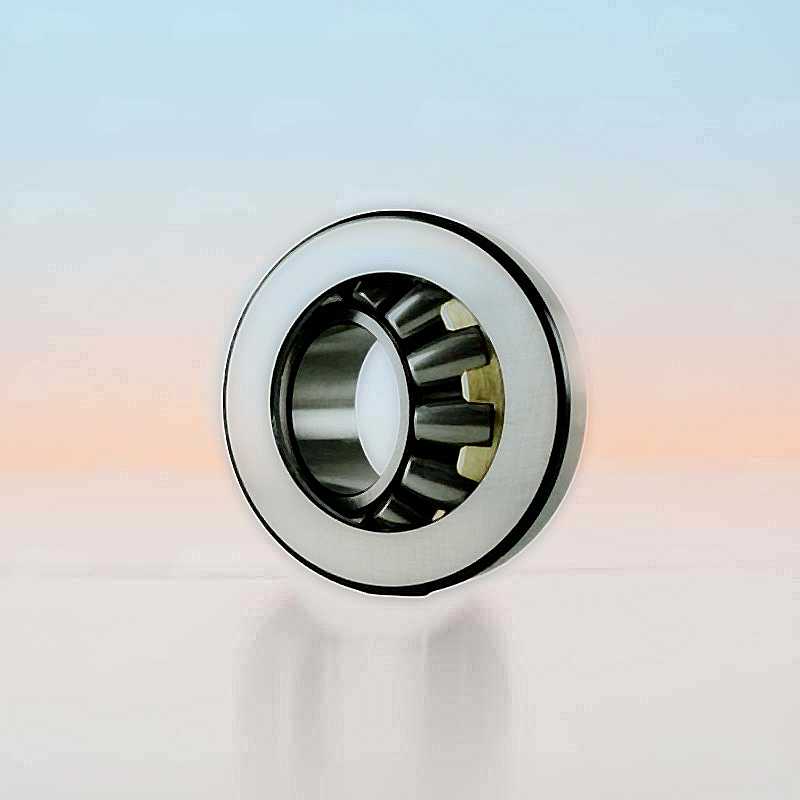

29436 M RICH Spherical Roller Thrust Bearing - 180 x 360 x 109 mm

Technical Specifications:

  • Catalog Code: 29436 M RICH
  • Brand: RICH
  • Type: Spherical roller thrust bearing
  • Bore Diameter (d): 180 mm
  • Outer Diameter (D): 360 mm
  • Total Height (T): 109 mm
  • Inner Ring Width (T3): 69.5 mm
  • Outer Ring Width (T1): 53 mm
  • Cage: Machined brass, guided on the outer ring (M)
  • Weight: 46.87 kg
  • Country of Origin: China

Product Overview:

The 29436 M RICH is an ultra-heavy-duty spherical roller thrust bearing designed to handle the most extreme axial loads in large-scale industrial machinery. With a substantial 180 mm bore and a 360 mm outer diameter, this bearing is engineered to provide massive thrust support while simultaneously managing radial forces. The internal rolling elements are situated at a steep angle to the bearing axis, which allows the unit to be self-aligning; this feature is critical for compensating for angular misalignment or shaft deflection under immense pressure. The machined brass cage (M) is specifically guided on the outer ring to ensure superior stability, reduced frictional heat, and maximum durability in high-vibration environments. Weighing over 46 kg, it is a vital component for high-power vertical shafts, hydroelectric turbines, marine propulsion systems, and heavy-duty extruders where uncompromising reliability and load capacity are required.

Key Performance Advantages:

  • Extreme Load Ratings: Specifically built for high-stress industrial applications requiring maximum axial load carrying capacity.
  • Advanced Self-Alignment: The spherical raceway design allows the bearing to function perfectly even with shaft misalignments, preventing uneven wear.
  • Premium Machined Brass Cage: Guided on the outer ring for enhanced mechanical strength and optimized lubrication flow.
  • Superior Dimensional Stability: High-purity steel construction ensures long-term performance and fatigue resistance in heavy-duty cycles.

Transparency Note: This bearing is manufactured under the RICH brand. The code 29436 M is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
180
Outer Diameter
360
Width
109
Cage
Brass
Category
Spherical Roller Thrust Bearing
