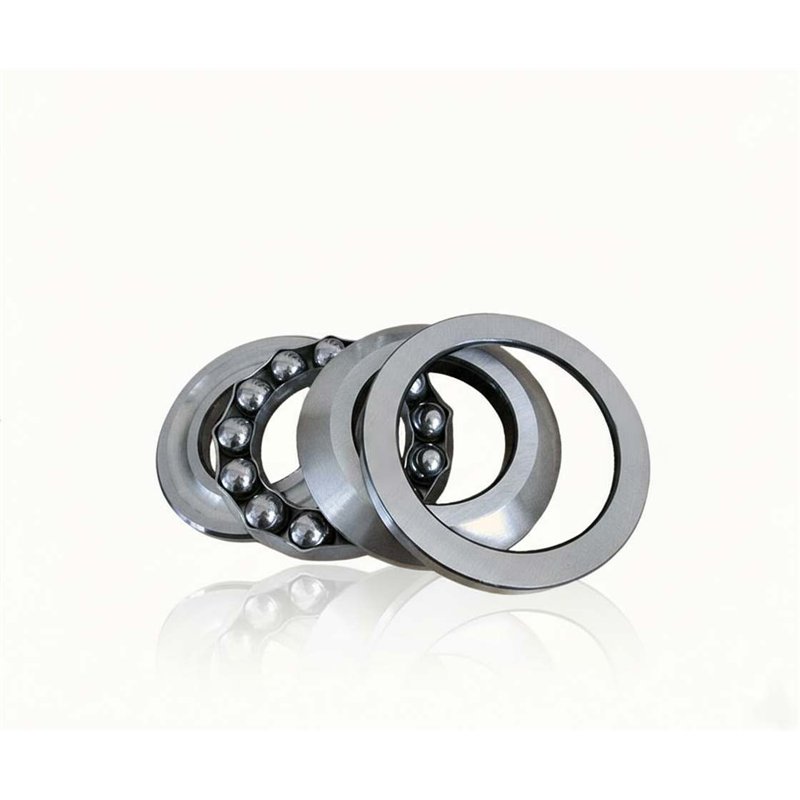

53206 U RICH Axial Deep Groove Ball Bearing – 30 × 52 × 20 mm
Technical Specifications:
- Brand: RICH
- Type: Axial deep groove ball bearing
- Model: 53206 U RICH
- Inner Diameter (d): 30 mm
- Outer Diameter (D): 52 mm
- Height (H): 20 mm
- Components: Includes U-type spherical washer
- Cage Material: Steel
- Weight: 0.172 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Axial load configuration in a single direction
- Alignment Feature: Spherical housing washer (U) for static misalignment compensation
- Component Design: Separable assembly with seating washer
- Material Type: High‑carbon chrome bearing steel
- Assembly Interface: Thrust bearing arrangement with self-aligning capability
53206 U RICH is an axial deep groove ball bearing equipped with a spherical housing washer. Dimensional and structural characteristics correspond to the 30 × 52 × 20 mm specification.
Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with the original equipment manufacturer.
