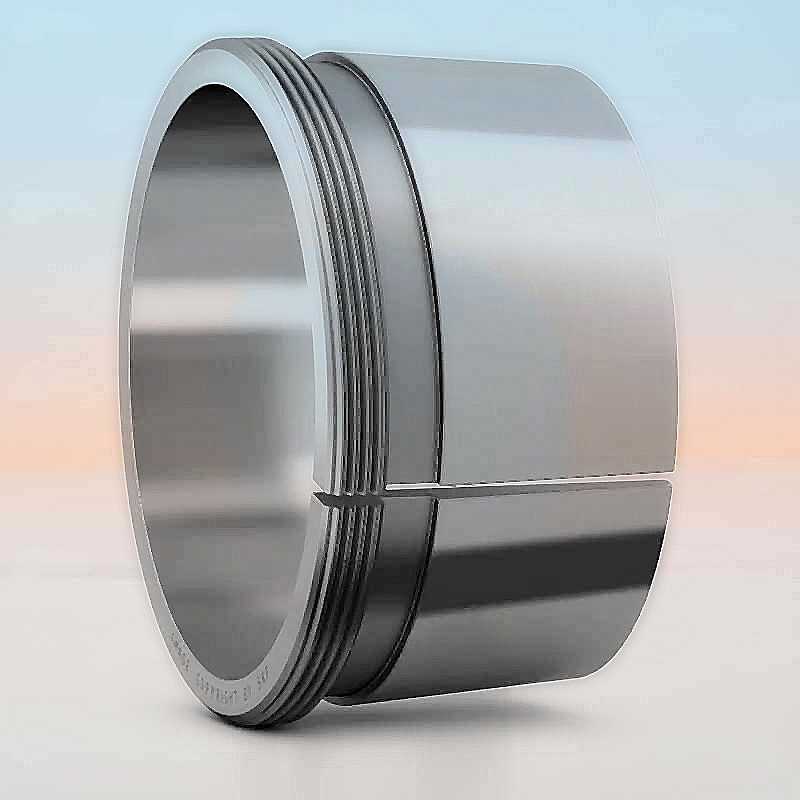

The AHX 2324 RICH is a precision-engineered withdrawal sleeve designed to facilitate the mounting and dismounting of bearings with a tapered bore onto stepped cylindrical shafts. With an inner diameter of 115 mm and a total length of 105 mm, this component is part of the heavy-duty 23 series, characterized by its extended length which provides a larger contact surface for superior grip and stability. The sleeve features a standard 1:12 taper on its outer circumference, allowing for a precise interference fit that can be adjusted to achieve the desired internal clearance within the bearing. A distinctive feature of the AHX 2324 is the M135x2 thread (noting a technical correction from the provided M13 snippet to the standard size for this series), which allows for the use of a hydraulic nut or mechanical nut to easily pull the sleeve from the bearing during disassembly. Manufactured from high-grade carbon steel, it is essential for high-load applications such as heavy-duty conveyors, industrial crushers, and large ventilation systems.
Transparency Note: This component is manufactured under the RICH brand. The code AHX 2324 is used for identification purposes and does not imply affiliation with other manufacturers. Note: The thread size for this model is typically M135x2.
