H 2308 RICH 35x40x46

Type: Adapter Sleeve
Model: H 2308 RICH
Dimensions: 35 x 40 x 46 mm
Components: Sleeve, Nut, and Lock Washer
Brand: RICH
Origin: China
RICH
H2308
€2.10
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

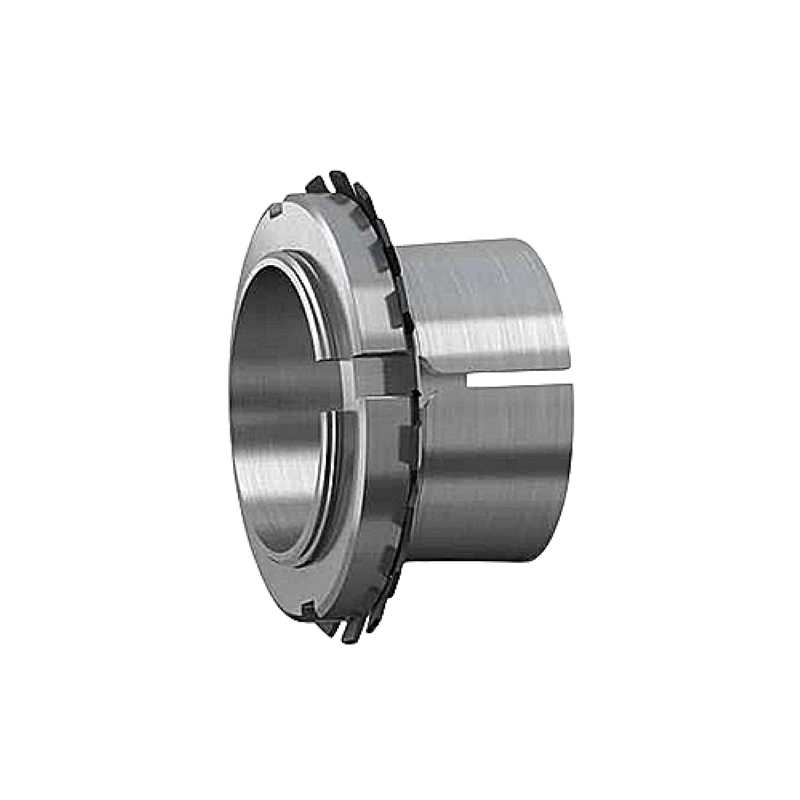

H 2308 RICH Adapter Sleeve - 35 x 40 x 46 mm

Technical Specifications:

  • Catalog Code: H 2308 RICH
  • Brand: RICH
  • Type: Adapter sleeve for tapered bore bearings
  • Shaft Diameter (d1): 35 mm
  • Bore Diameter (d): 40 mm
  • Width (B1): 46 mm
  • Weight: 0.235 kg
  • Country of Origin: China

Key Performance Advantages:

  • Enhanced Axial Stability: The RICH brand ensures a high-strength friction connection. With its 46 mm width, this sleeve offers a superior contact area on the shaft, preventing movement during heavy-duty industrial cycles.
  • Accurate Internal Clearance: This sleeve allows for precise radial internal clearance adjustment. By tightening the lock nut, the bearing is driven up the tapered sleeve to achieve the exact fit required for high-load applications.
  • Industrial Mounting Versatility: Perfectly suited for use on standard commercial-grade shafts, it eliminates the need for precision-machined shaft shoulders or threads, simplifying the overall machine design.
  • Complete Safety System: Each assembly includes the slotted sleeve, a precision lock nut, and a multi-tab locking washer designed to lock into the sleeve's keyway, providing a fail-safe against vibration-induced loosening.
  • Durable Structural Integrity: Manufactured from premium steel resistant to surface wear and compression, ensuring the sleeve can be reused during bearing maintenance and replacement cycles.

Transparency Note: This component is manufactured under the RICH brand. The code H 2308 is used for identification and

Data sheet

Inner Diameter
35
Outer Diameter
40
Width
46
Category
Adapter Sleeve
