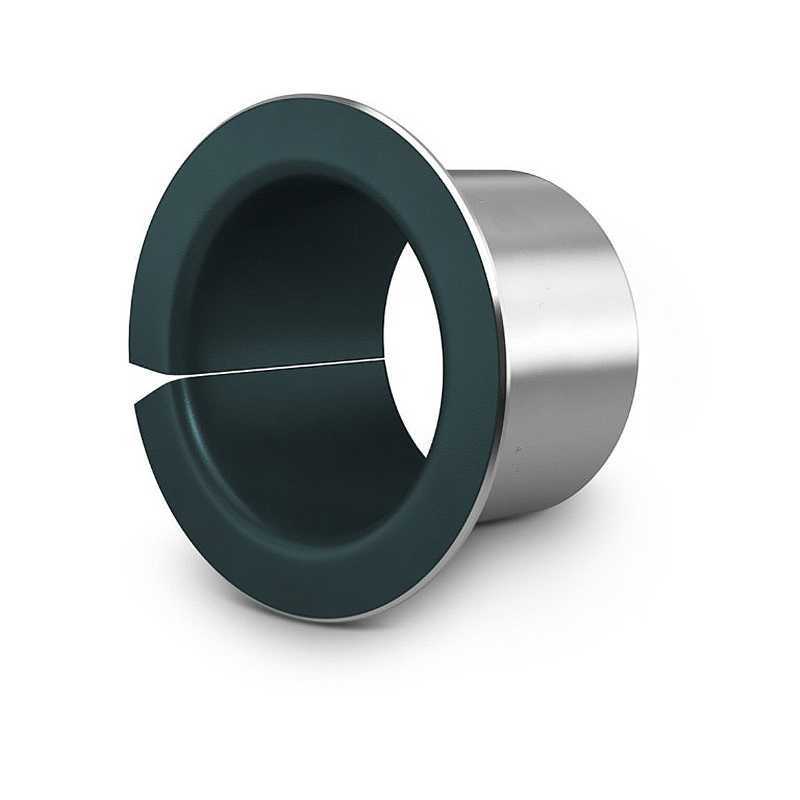

PAF 15120 P10 RICH 15x17x12 PAF15120P10 RICH
zoom_out_map
PAF 15120 P10 RICH 15x17x12 PAF15120P10 RICH

PAF 15120 P10 RICH 15x17x12

Type: Collar Bush
Model: PAF 15120 P10 RICH
Bore: 15 mm
Material: PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAF15120P10
€0.23
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 50.

PAF 15120 P10 RICH Flanged Bush - 15 x 17 x 12 mm

Technical Specifications:

  • Catalog Code: PAF 15120 P10 RICH
  • Brand: RICH
  • Type: Flanged collar bush (DU series)
  • Dimensions: 15 x 17 x 12 mm
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 17 mm
  • Width (L): 12 mm
  • Material: PTFE on steel back
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.006 kg
  • Country of Origin: China

Key Performance Advantages:

  • Integrated Flange: The collar design allows the bush to handle both radial loads and light axial thrust loads, acting as a built-in thrust washer.
  • Maintenance-Free Operation: The PTFE-based sliding layer ensures low friction and smooth movement without the need for external grease or oil.
  • High Load Capacity: Built with a rigid steel backing to provide excellent mechanical support and resistance to deformation.
  • Thin-Wall Construction: Space-saving design that allows for compact housing dimensions while maintaining high performance.

Transparency Note: This product is manufactured under the RICH brand. The code PAF 15120 P10 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
15
Outer Diameter
17
Width
12
Weight
0,006
Category
Flanged Bush
