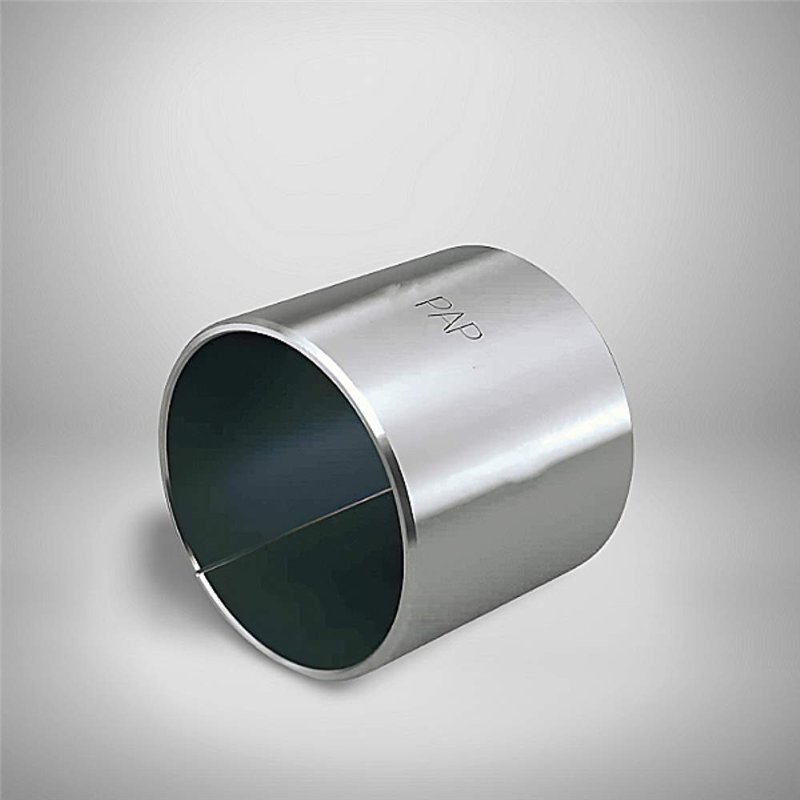

PAP 4528 P10 RICH Thin Wall Bush - 45 x 50 x 28 mm
Technical Specifications:
- Catalog Code: PAP 4528 P10 RICH
- Brand: RICH
- Type: Thin wall dry sliding bush
- Dimensions: 45 x 50 x 28 mm
- Inner Diameter (d): 45 mm
- Outer Diameter (D): 50 mm
- Width (L): 28 mm
- Material: PTFE on steel back (DU series)
- Lubrication: Self-lubricating (Maintenance-free)
- Weight: 0.08 kg
- Country of Origin: China
Key Performance Advantages:
- Maintenance-Free Operation: The PTFE-based sliding layer allows for smooth dry operation without the need for external grease or oil, preventing contamination.
- High Radial Load Support: Featuring a 2.5 mm wall thickness and a rigid steel backing, this bush provides high structural stability and resistance to deformation under pressure.
- Superior Wear Resistance: The porous bronze interlayer ensures high thermal conductivity and a strong mechanical bond between the steel and the self-lubricating surface.
- Versatile Industrial Fit: Ideal for a wide range of rotational and oscillating movements in construction, agricultural, and hydraulic machinery.
Transparency Note: This product is manufactured under the RICH brand. The code PAP 4528 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.
