PAP 4545 P10 RICH 45x50x45 PAP4545P10 RICH

PAP 4545 P10 RICH 45x50x45

Type: Thin Wall Bush
Model: PAP 4545 P10 RICH
Bore: 45 mm
Material: PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP4545P10
€1.72
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 7.

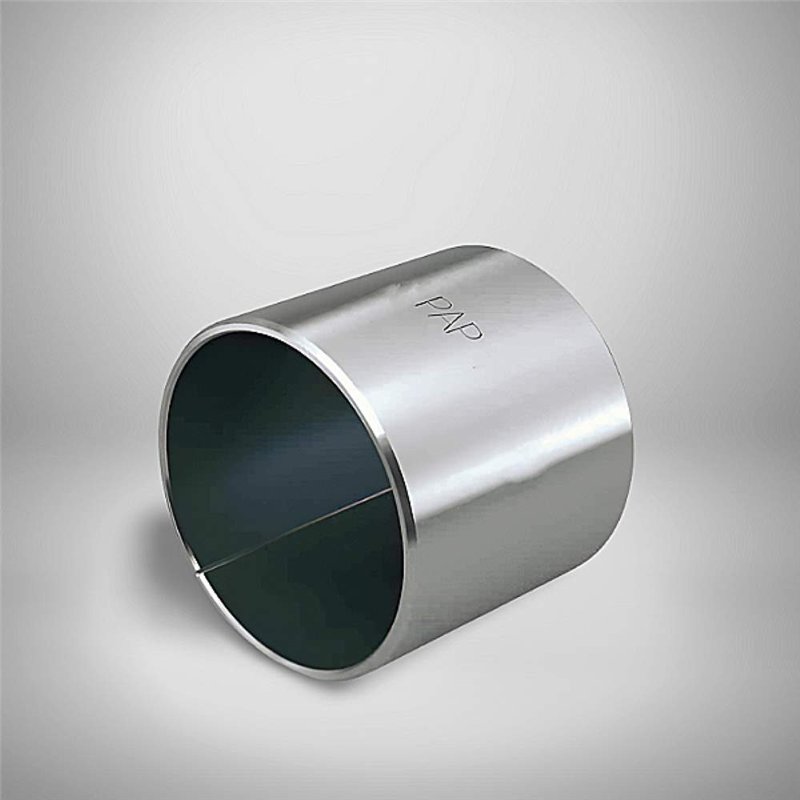

PAP 4545 P10 RICH Thin Wall Bush - 45 x 50 x 45 mm

Technical Specifications:

  • Catalog Code: PAP 4545 P10 RICH
  • Brand: RICH
  • Type: Thin wall dry sliding bush
  • Dimensions: 45 x 50 x 45 mm
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 50 mm
  • Width (L): 45 mm
  • Material: PTFE on steel back (DU series)
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.127 kg
  • Country of Origin: China

Key Performance Advantages:

  • Extended Surface Area: The 45 mm width (equal to the bore diameter) ensures a square contact profile, providing maximum stability and load distribution for heavy-duty radial applications.
  • Maintenance-Free PTFE Layer: Features a self-lubricating sliding surface that requires no grease or oil, making it ideal for environments where cleanliness is essential.
  • Steel-Backed Durability: The high-strength carbon steel backing provides excellent structural support, allowing the bush to withstand high pressure without deformation.
  • Efficient Heat Management: The porous bronze interlayer acts as a thermal bridge, efficiently dissipating heat away from the sliding surface to ensure consistent performance.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 4545 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
45
Outer Diameter
50
Width
45
Category
Thin wall bush
