PAP 5060 P20 RICH 50x55x60 PAP5060P20 RICH
zoom_out_map
PAP 5060 P20 RICH 50x55x60 PAP5060P20 RICH

PAP 5060 P20 RICH 50x55x60

Type: Thin Wall Bush
Model: PAP 5060 P20 RICH
Bore: 50 mm
Material: POM/PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP5060P20
€3.03
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 6.

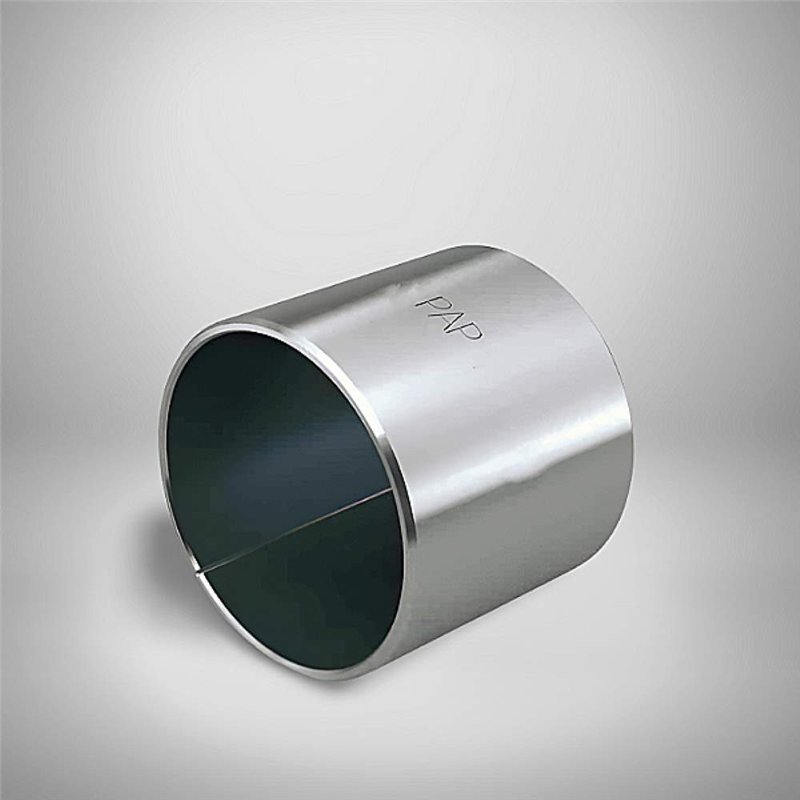

PAP 5060 P20 RICH Thin Wall Bush - 50 x 55 x 60 mm

Technical Specifications:

  • Catalog Code: PAP 5060 P20 RICH
  • Brand: RICH
  • Type: Thin wall sliding bush (Boundary lubrication)
  • Dimensions: 50 x 55 x 60 mm
  • Inner Diameter (d): 50 mm
  • Outer Diameter (D): 55 mm
  • Width (L): 60 mm
  • Material: POM/PTFE on steel back (DX series)
  • Lubrication: Designed for relubrication (Boundary lubrication)
  • Weight: 0.161 kg
  • Country of Origin: China

Key Performance Advantages:

  • Optimized for Relubrication: The P20 series (DX type) features a sliding surface specifically designed with grease pockets to store lubricant, ensuring long-term reliability in boundary lubrication conditions.
  • Maximum Load Distribution: With an extra-long width of 60 mm, this bush provides an extensive contact area that significantly lowers specific surface pressure and maximizes shaft stability.
  • Structural Rigidity: The carbon steel backing offers high mechanical strength and load-carrying capacity, maintaining precise circularity even under heavy radial stress.
  • Low Maintenance: While designed for relubrication, the high-performance POM/PTFE top layer ensures low friction and high wear resistance, extending intervals between service.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 5060 P20 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
55
Width
60
Category
Thin wall bush
