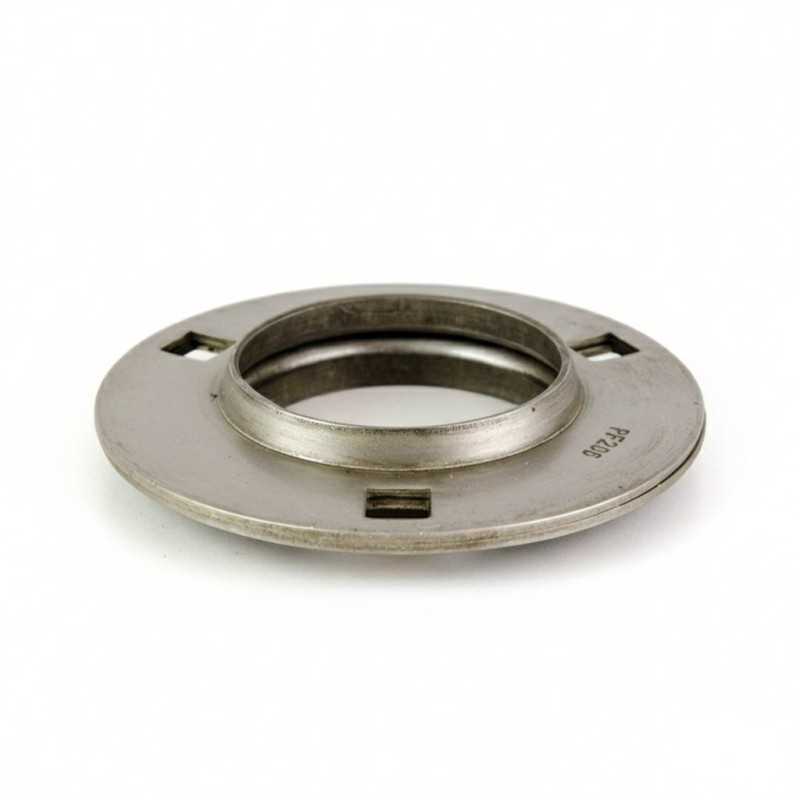

SS PF 206 RICH Stainless Steel Pressed Steel Housing – 112.7 × 90.5 × 9 mm
Technical Specifications:
- Type: Pressed steel housing
- Brand: RICH
- Model Designation: SS PF 206
- Outer Diameter (D): 112.7 mm
- Mounting Hole Circle (D2): 90.5 mm
- Total Height (A): 9 mm
- Flange Thickness (A1): 5 mm
- Mounting Bolt Hole (N): 8.7 mm
- Material: Stainless steel
- Weight: 0.288 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Three‑bolt round pressed steel flange housing designed for lightweight stainless steel applications.
- Material Type: Corrosion‑resistant stainless steel construction, ideal for environments with high humidity or chemical exposure.
- Internal Geometry: Profiled housing seat engineered to accommodate standard insert bearings for stable alignment.
- Dimensional Format: Compact unit configuration based on a 112.7 mm outer diameter and 90.5 mm mounting centers.
Transparency Note:
This housing is manufactured under the RICH brand. Dimensional values are provided solely for identification and do not imply compatibility with specific equipment or manufacturers.
