UC203D1 17x47x31 UC203D1 RICH
zoom_out_map
UC203D1 17x47x31 UC203D1 RICH

UC203D1 17x47x31

Type: Insert Ball Bearing
Model: UC203D1 RICH
Bore: 17 mm
Width: 31 mm
Brand: RICH
Origin: China
RICH
UC203D1
€2.35
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

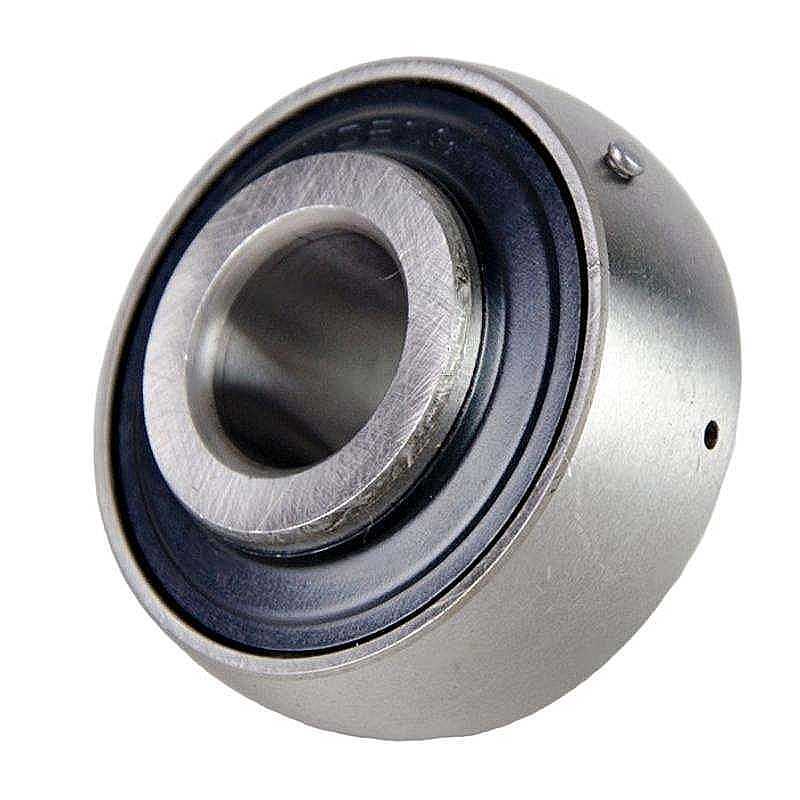

UC203D1 RICH Insert Ball Bearing - 17 x 47 x 31 mm

Technical Specifications:

  • Catalog Code: UC203D1 RICH
  • Brand: RICH
  • Type: Insert ball bearing (Radial insert ball bearing)
  • Bore Diameter (d): 17 mm
  • Outer Diameter (D): 47 mm
  • Inner Ring Width (B): 31 mm
  • Outer Ring Width (C): 16 mm
  • Outer Ring Profile: Spherical (Rounded)
  • Sealing: Double-sided lip seal with slinger (plate)
  • Weight: 0.164 kg
  • Country of Origin: China

Key Performance Advantages:

  • Spherical Outer Ring: Designed with a rounded outer diameter to allow for self-alignment when mounted in a compatible housing, compensating for initial shaft misalignment.
  • Extended Inner Ring: The 31 mm wide inner ring provides increased support on the shaft and features set screw holes for secure locking.
  • Superior Sealing System: Equipped with a double-sided lip seal covered by a protective metal slinger, offering high resistance to dust, moisture, and heavy contamination.
  • Ready for Installation: Pre-lubricated and designed for high-load applications in agricultural machinery, conveyor systems, and industrial fans.

Transparency Note: This product is manufactured under the RICH brand. The code UC203D1 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
17
Outer Diameter
47
Width
31
