UCFX20 RICH

Type: Cast Iron Bearing Unit (4-Bolt Flange)
Model: RICH UCFX20
Bore Diameter: 100 mm
Brand: RICH
Origin: China
RICH
UCFX20
€120.80
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

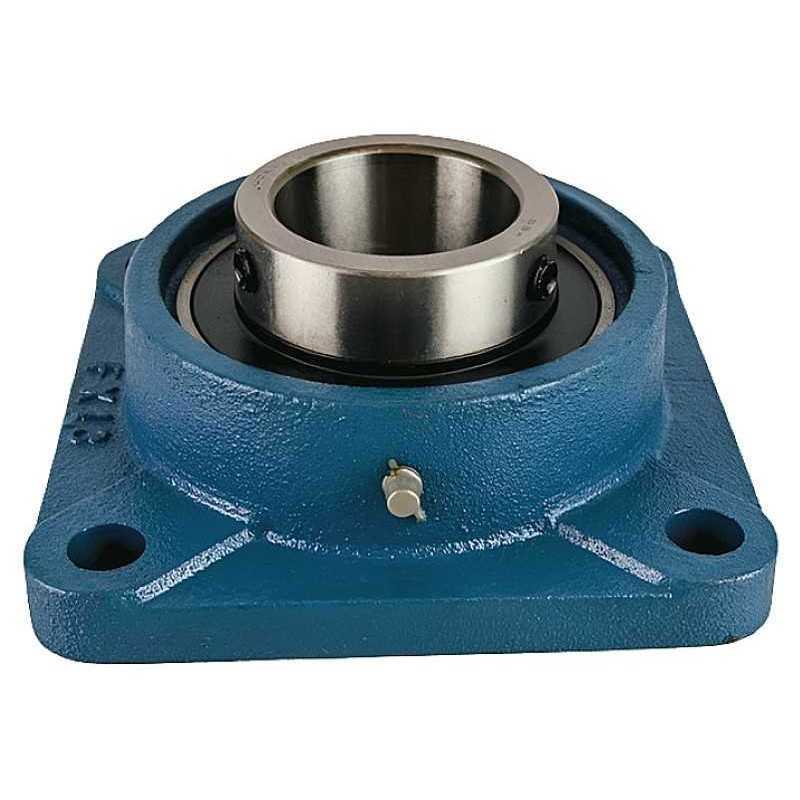

UCFX20 RICH Cast Iron Bearing Unit – 100 mm Bore

Technical Specifications:

  • Brand: RICH
  • Type: Cast iron bearing unit (4-bolt square flange)
  • Model: UCFX20 RICH
  • Bore Diameter (d): 100 mm
  • Overall Width (L): 268 mm
  • Mounting Hole Distance (J): 211 mm
  • Housing Width (A): 97 mm
  • Housing Base Width (A1): 31 mm
  • Housing Material: Cast iron
  • Insert Type: UCX-series bearing
  • Weight: 17.608 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: 4-bolt square flange housing with UCX-series insert bearing.
  • Internal Geometry: Spherical outer ring design for shaft misalignment compensation.
  • Material Type: Cast iron housing with steel insert bearing.
  • Sealing System: Contact seals on the insert bearing.
  • Lubrication: Pre-lubricated insert with grease nipple.
  • Dimensional Format: 100 mm bore; square flange configuration.

Transparency Note: This bearing unit is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
100
Outer Diameter
0
Width
0
